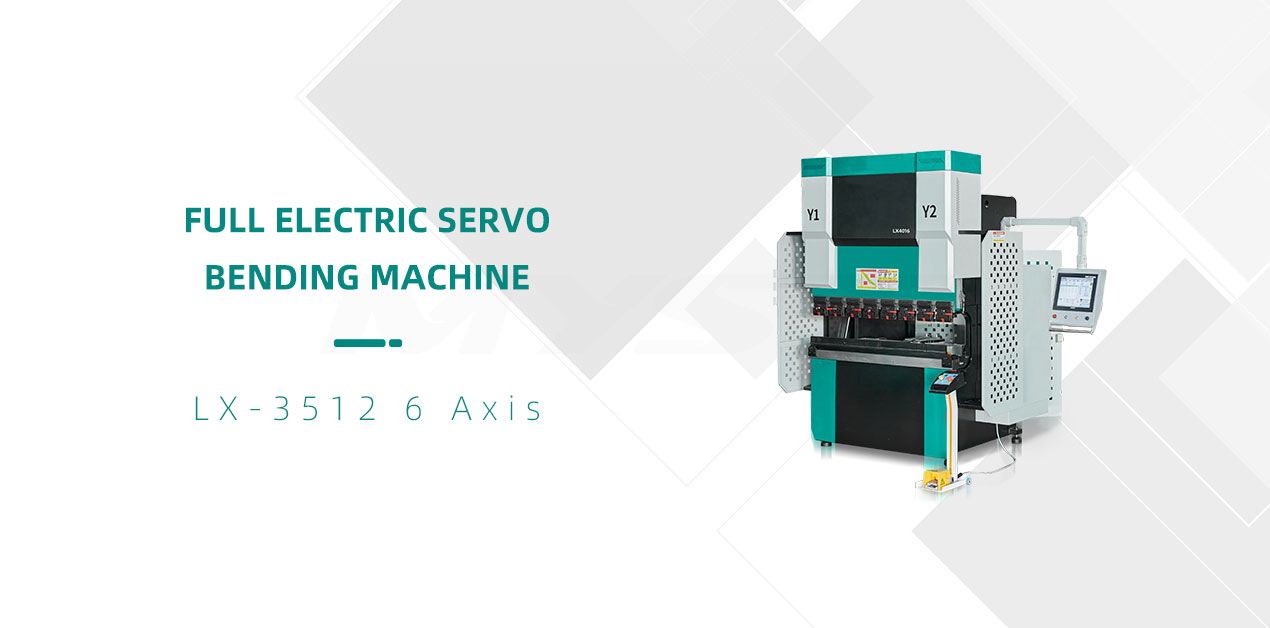

Full Electric Servo Bending Machine LX-3512 6 Axis

1. High bending efficiency and high precision. When bending plates of different thicknesses, a variety of upper and lower molds can be used to bend workpieces of various shapes to meet customer needs.

2. The frame adopts a steel plate welding structure, which is heat-treated and annealed to eliminate internal stress, with high strength and strong rigidity.

3. The all-electric servo integrated system has a simple and practical structure and is green and environmentally friendly.

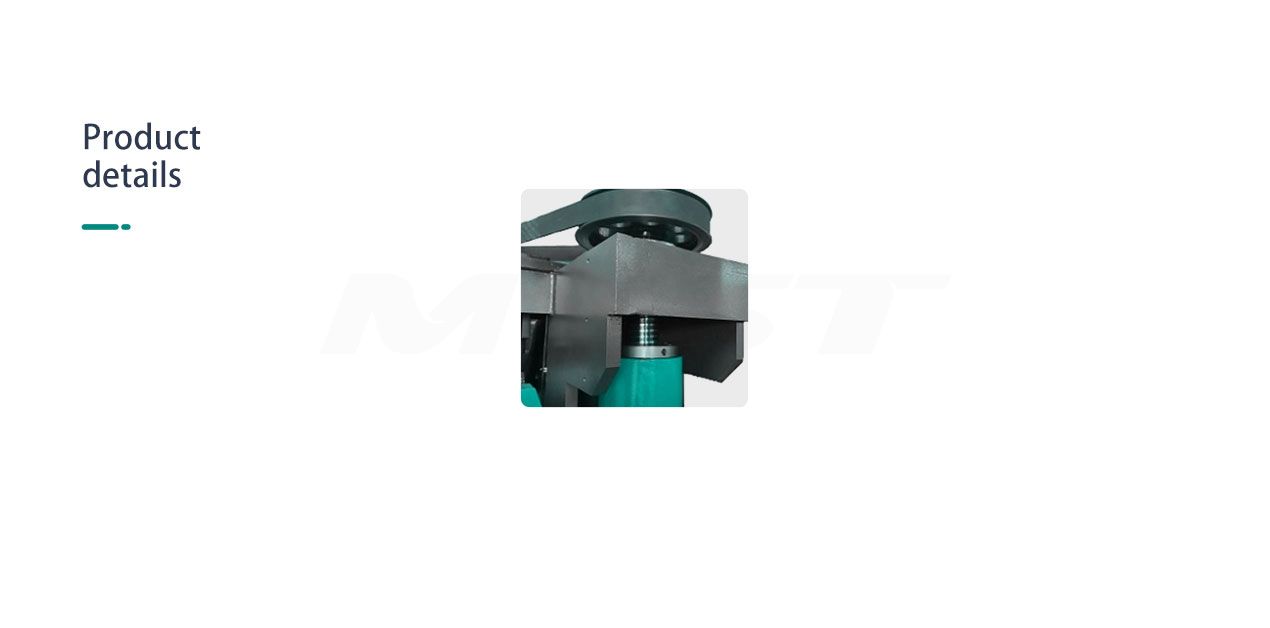

4. It adopts Taiwan Hiwin's left and right symmetrical double screws, which have stable and reliable performance and precise bending angles.

5. The upper mold is equipped with a quick clamping middle plate with an inclined wedge-type fine-tuning compensation mechanism to ensure excellent bending accuracy.

6. This product adopts Japanese technology, with reliable performance, beautiful appearance, low failure rate and low maintenance cost.

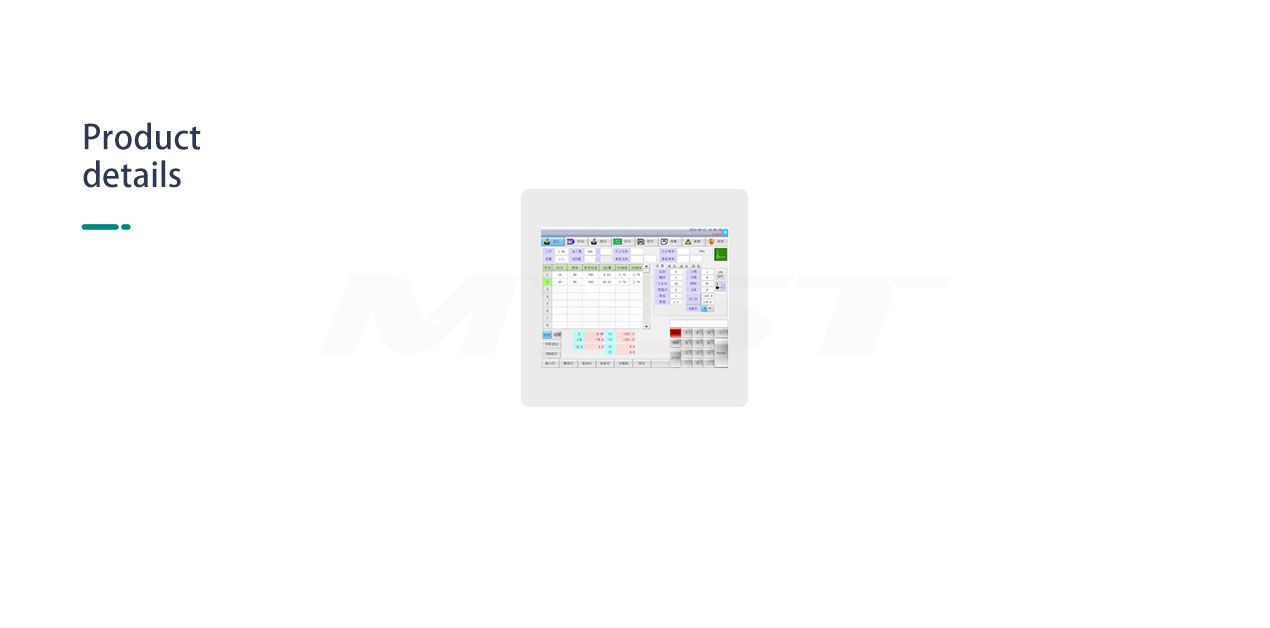

CNC operating system

1、The CNC system SL100-P adopts a high-end CNC system development platform and advanced sheet metal bending algorithms and motion control algorithms. The mainboards all use industrial-grade chips. The CNC system has passed EMC electromagnetic compatibility verification and high and low temperature environment adaptability testing.

2、High-end design: The CNC system adopts a high-end industrial style luxury panel design, a 12-inch LCD touch screen, and the interface display is clear at a glance.

3、Direct programming function: The system operation interface is simple and clear, and it also has a direct programming function. For simple bending, the direct programming function is the most convenient. You only need to simply enter the back gear, angle and other parameters of each process to perform bending processing.

All-electric servo control system

Adopt all-electric servo pump control system, energy saving and environmental protection, full closed-loop control, the same design concept as Japanese bending machines.

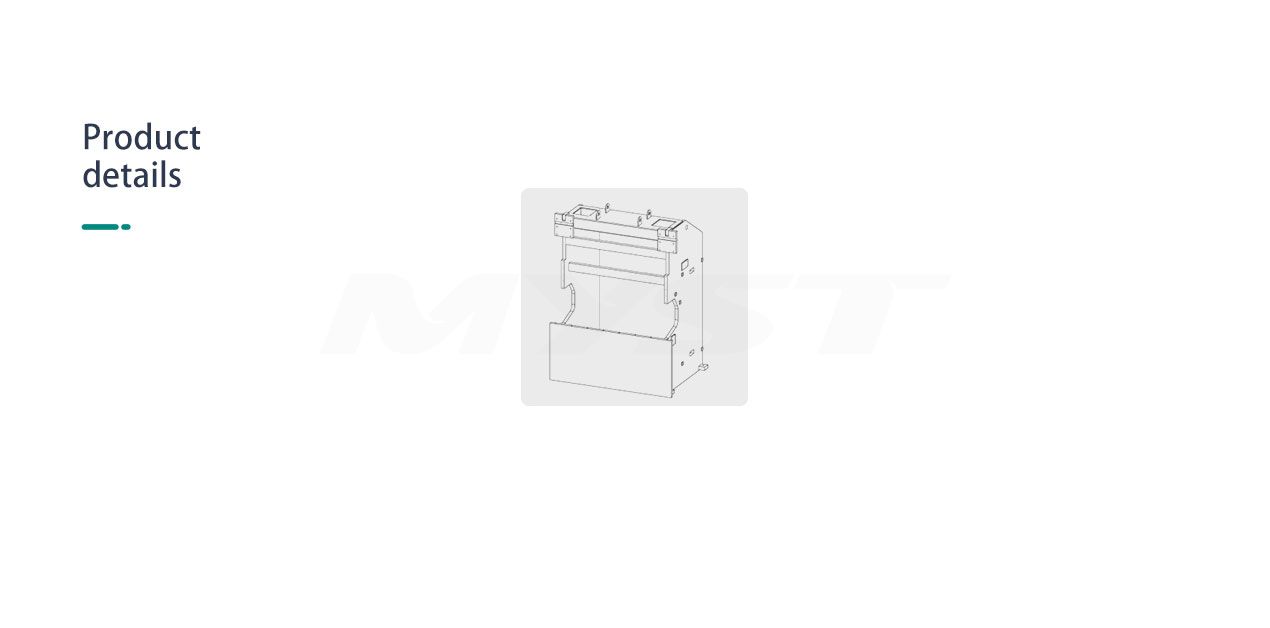

Machine frame processing

1、The frame is welded by the left and right side panels, lower panels, with strength and rigidity.

2、After strict heat treatment to eliminate stress annealing welding internal stress,so the machine bed has high precision and good stability.

3、The production process of the frame is all operated by the company itself,which can strictly control the quality.

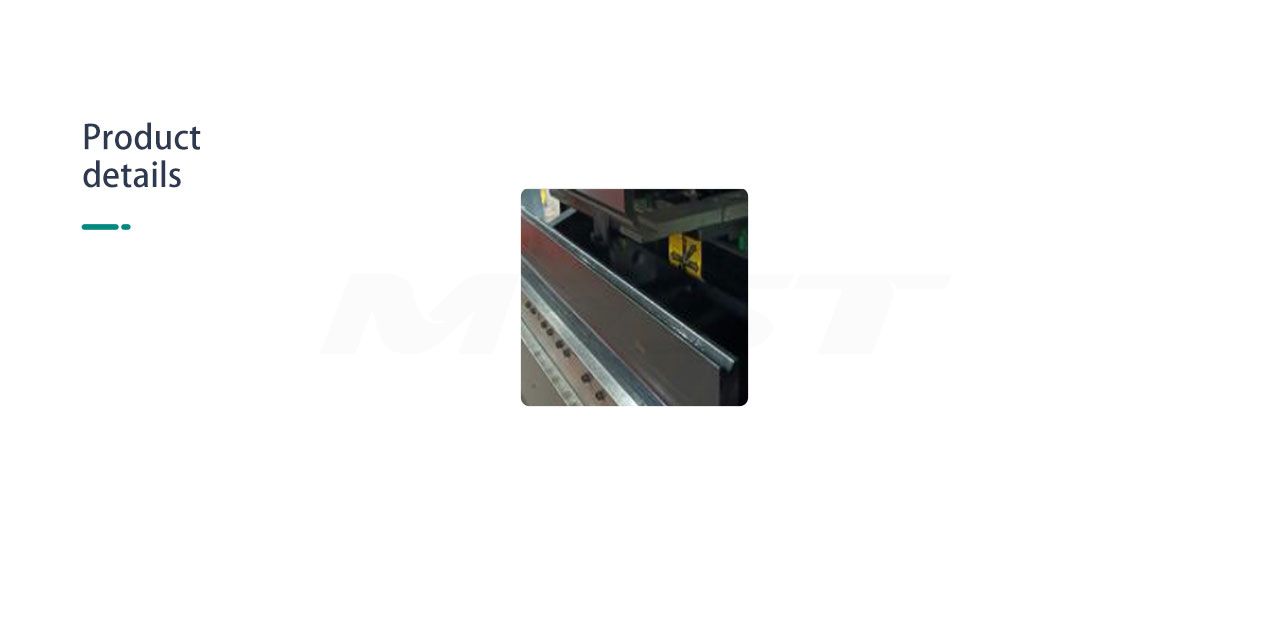

Bending mold

Upper and lower tool can be installed with multiple short molds splicing or the whole length mold installation, with high precision, good interchangeability, easy assembly and disassembly.

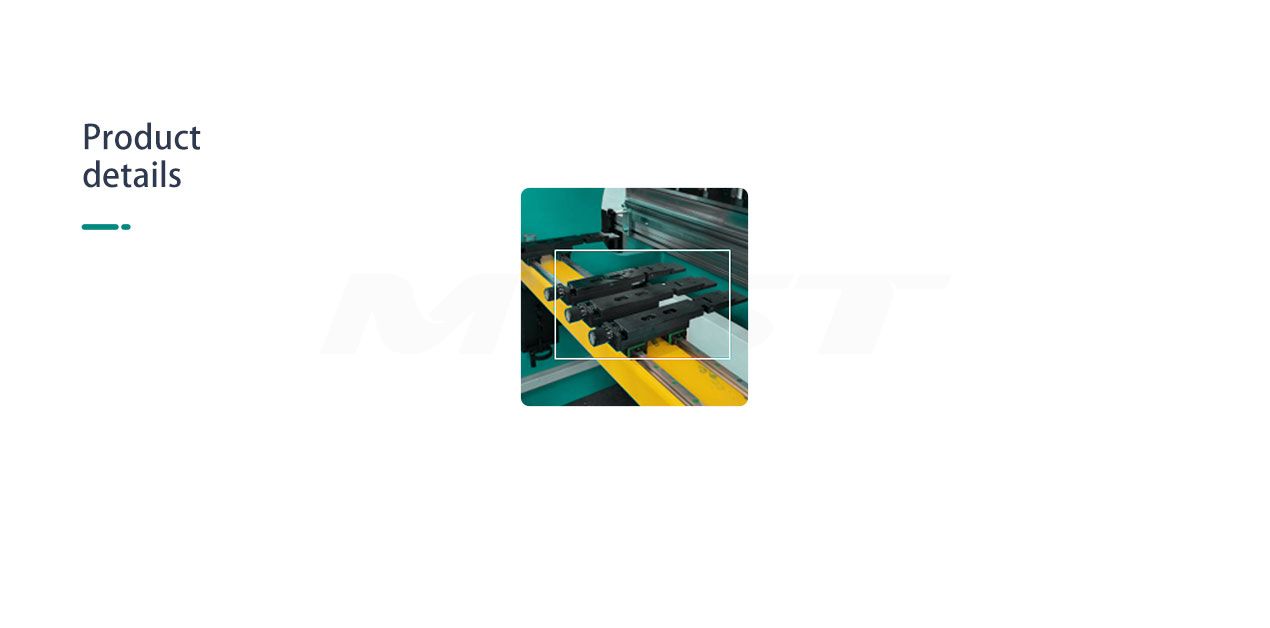

Back barrier Back gauge

The standard configuration is four-axis (X, Y1 Y2 R)  ,six-axis (Y1 Y2 X, R,Z1,Z2 ) or eight-axis (Y1 Y2 X1 X2 R1 R2) can be selected according to different needs of customers.

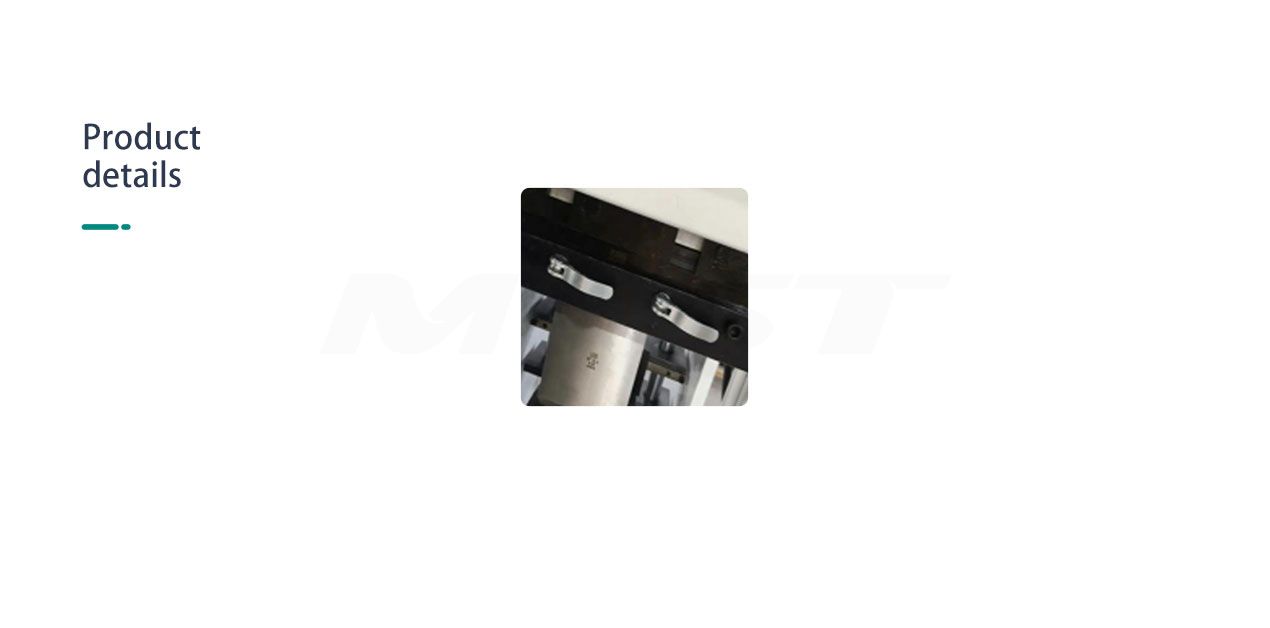

Wear-resistant Quick Clamp

The inner side of the CNC quick fixture is equipped with wear-resistant rubber strips, which are easy to clamp when installing the bending machine mold, without loosening, and do not drop the tool, which greatly shortens the adjustment time for clamping the upper mold.

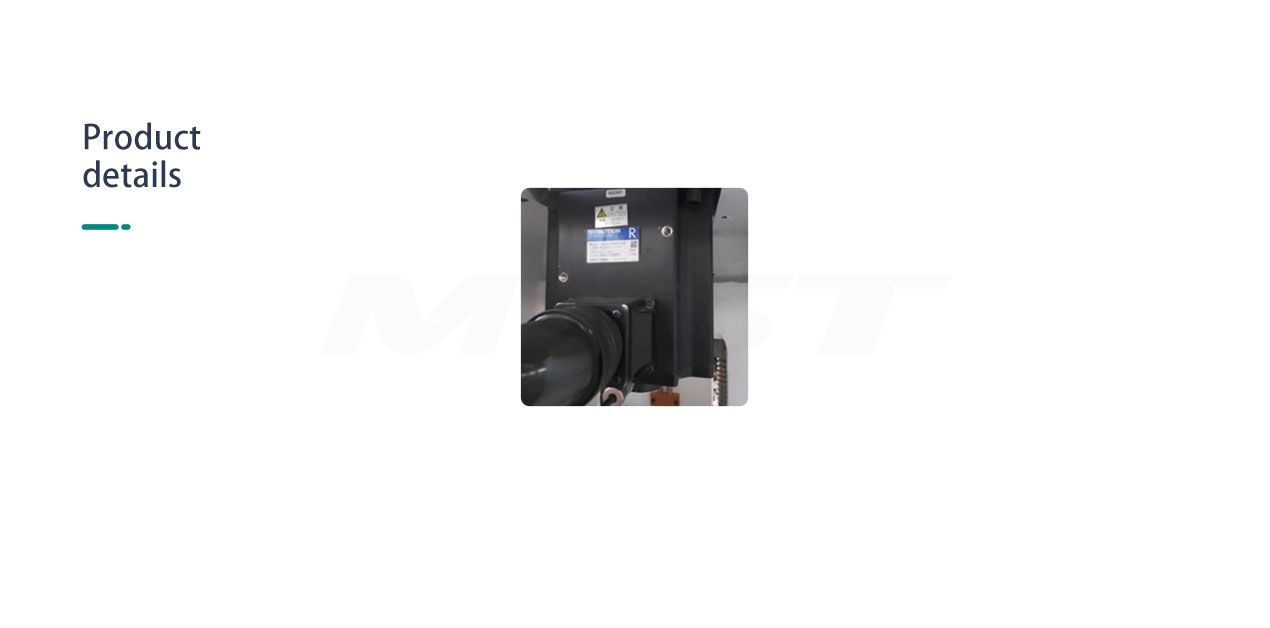

Main motor

Servo motors are high quality, innovative and efficient.

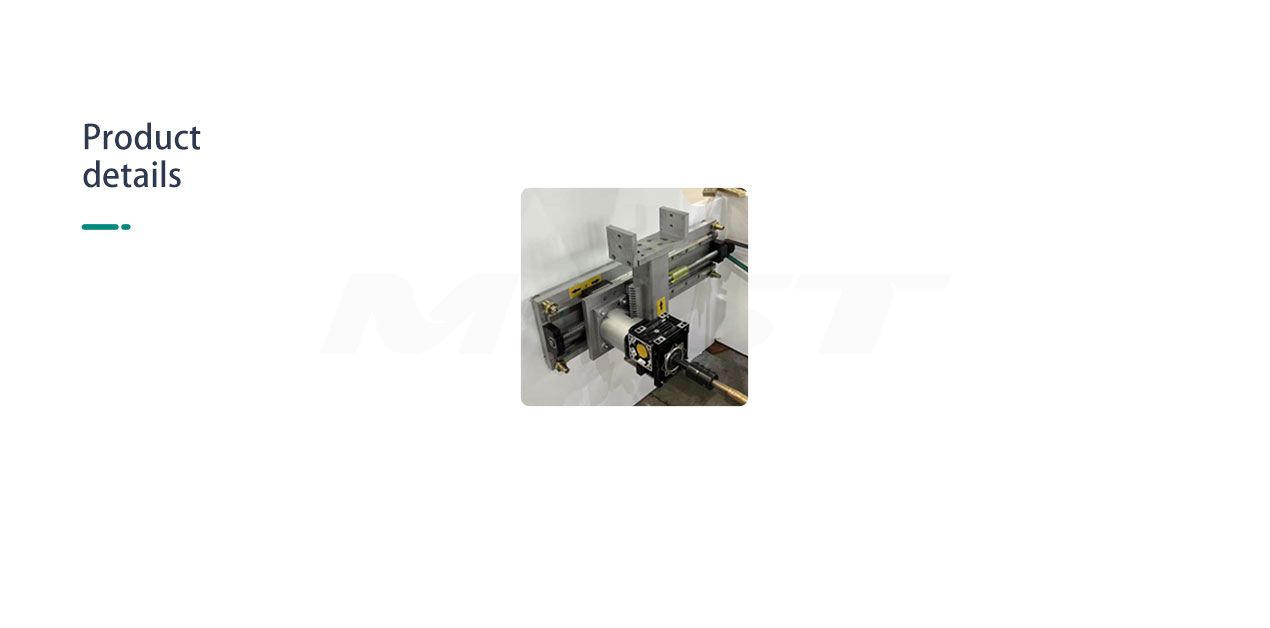

Numerical control finger

CNC finger, higher precision, faster efficiency

Linear Rails

To guarantee running precision

For the laser cutting machine we have professional after sale online helping , if you have some problem can’t solved online our engineer can go your factory solved it.
