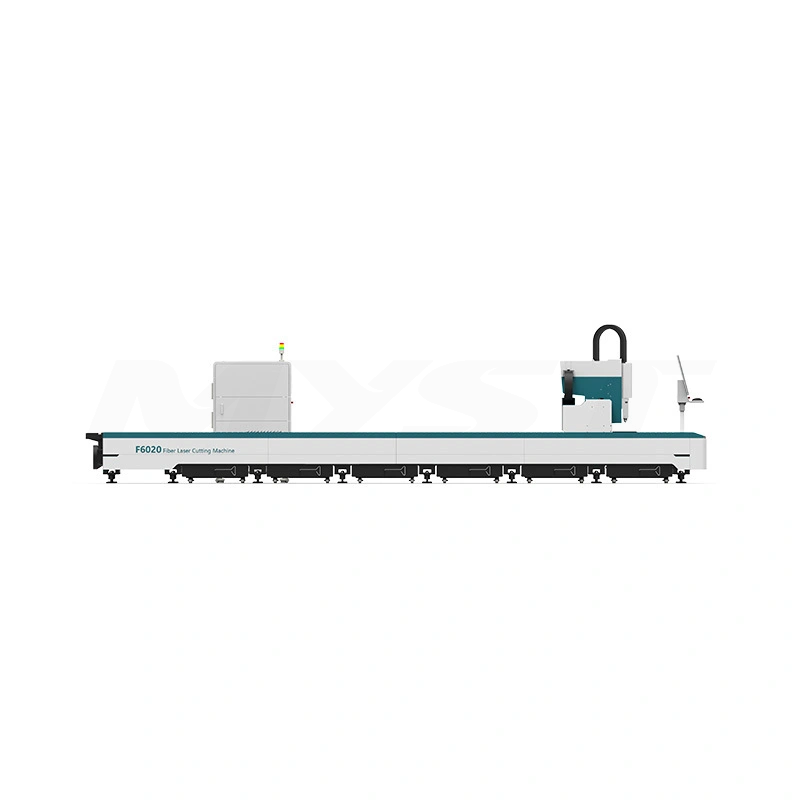

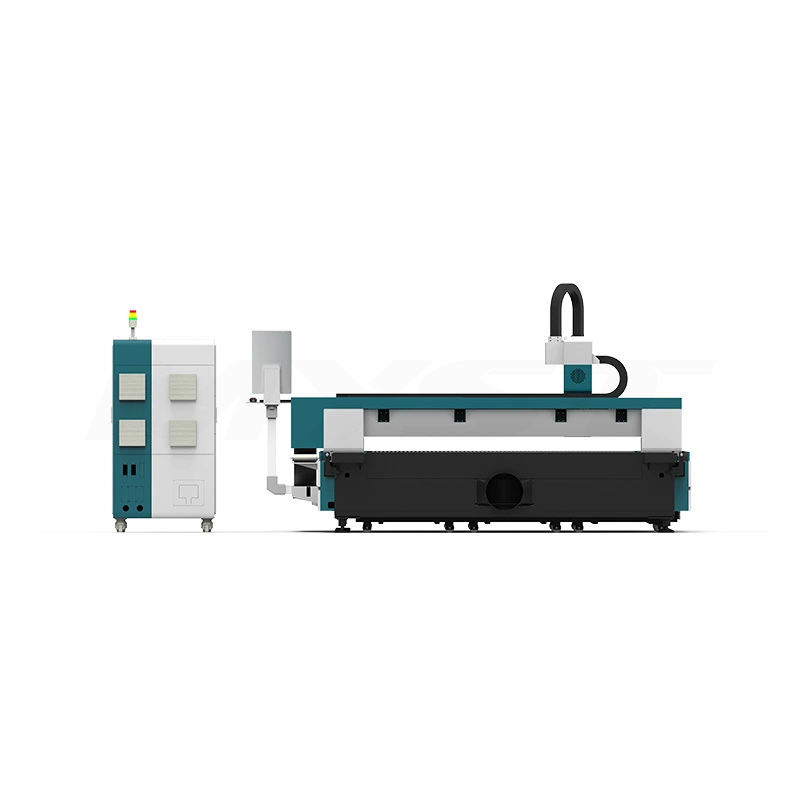

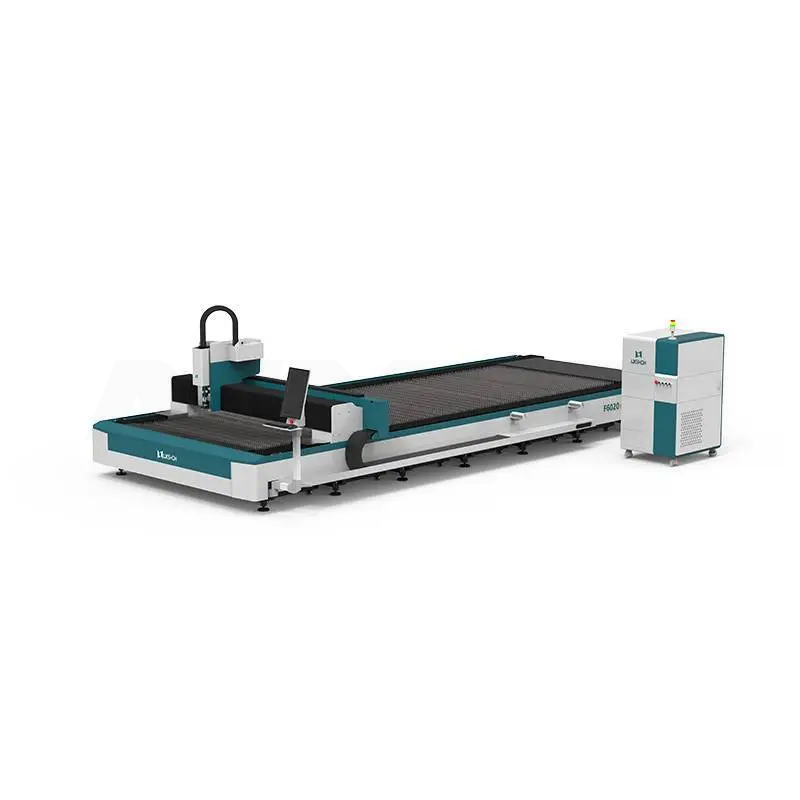

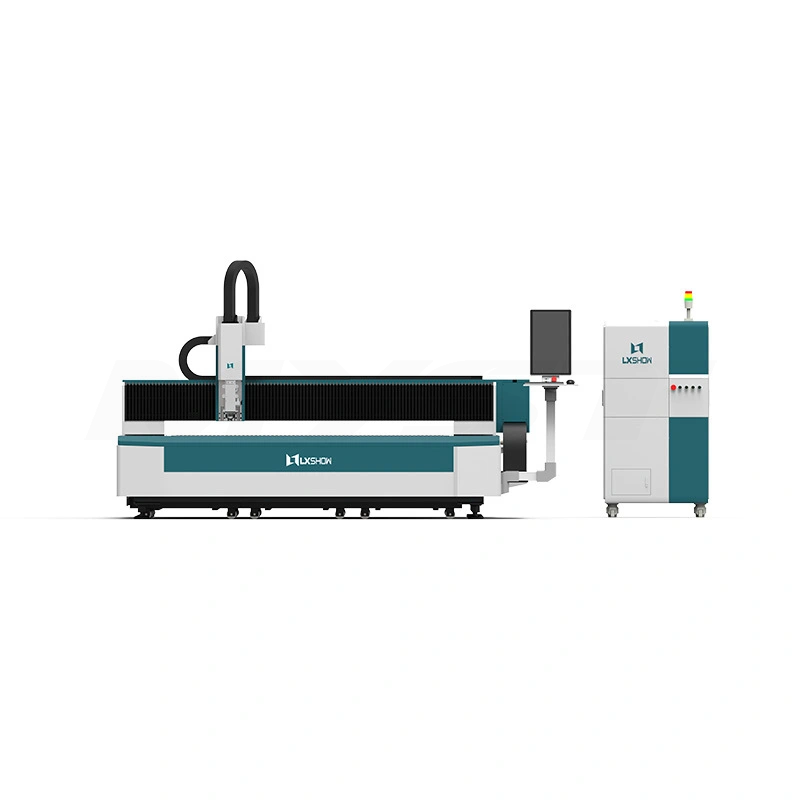

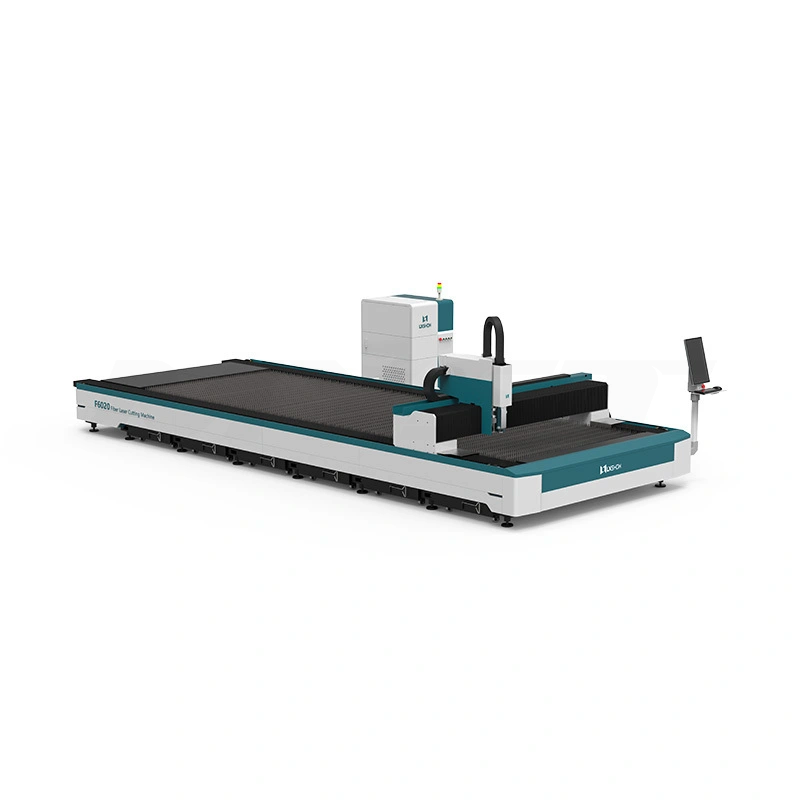

LXSHOW High Power 8-30KW LX6020F Metal Sheet Fiber Laser Cutting Machine

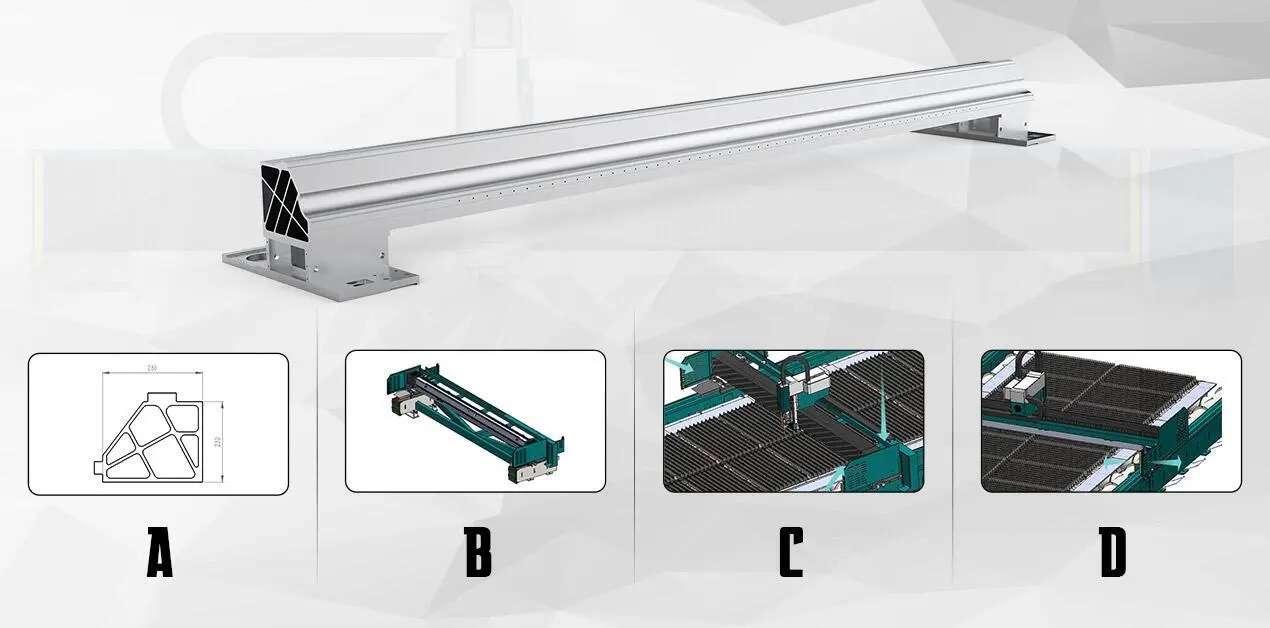

A： The triangular beam with super large section can maximize the rigidity of the beam while reducing the weight of the beam.

B： The gantry can be delivered modularly without disassembling the beam to avoid the loss of precision caused by the disassembly of the beam.

C： Equipped with light curtain protection to prevent the machine gantry from colliding with workers.

D： With the self-adaptive adjustment function on the left and right sides of the gantry, even if there is an error in the on-site assembly accuracy of the customer, the self-adaptive adjustment function can ensure the cutting accuracy to the greatest extent.

1.Full 360° strong adsorption

2.Fully enclosed smoke control

3.Automatically senses cutting head position

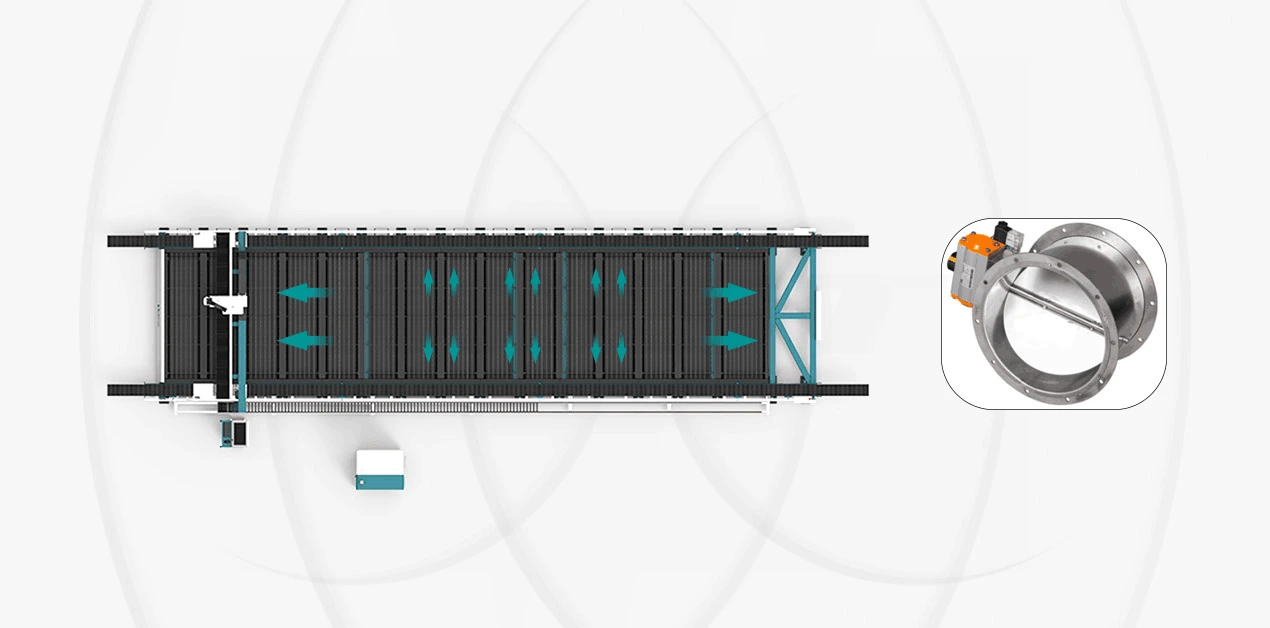

In the dust area, the waste trolley and the middle partition form a closed environment, and the air valve is used for partition dust removal, and the sealing performance is good, ensuring that the large-format open model machine still has a strong dust removal effect.

1.Modular design of blade components, multi-point support for thick plates, higher load-bearing performance, and reduced maintenance and replacement costs in the later period

2.Thick plates are used in the middle of the platform to bear the load. After the material is loaded, the load-bearing of the plate directly acts on the whole bed, and the overall load-bearing capacity of the machine is twice that of the corresponding machine in the same industry. At the same time, the middle thick plate support has the advantages of small heating area and large heat dissipation area, so as to avoid thermal deformation of the platform.

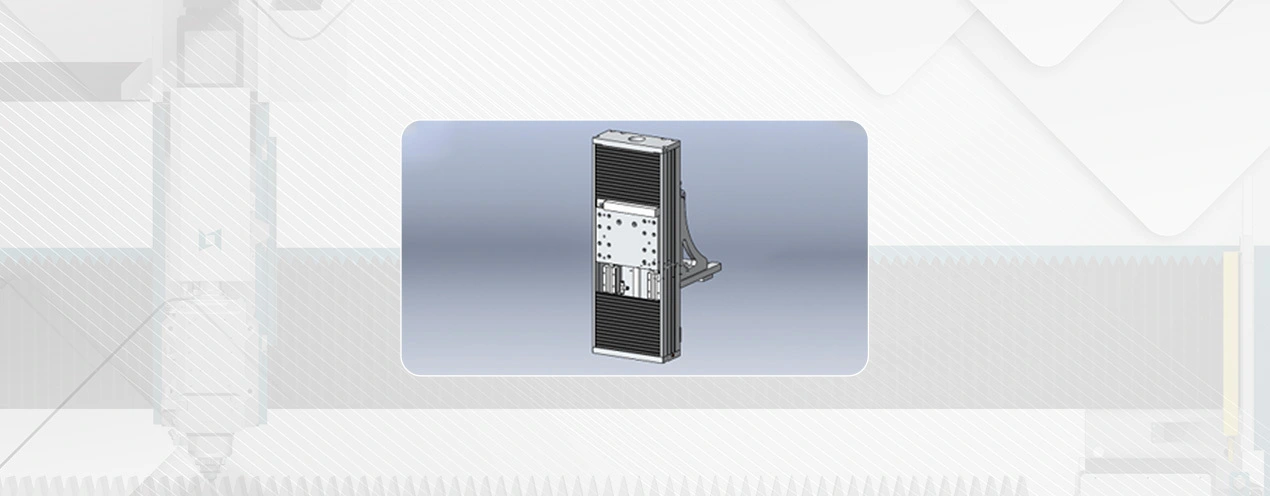

The Z-axis adopts a fully enclosed design, which effectively prevents cutting dust from entering the Z-axis screw and improves the service life of the screw.

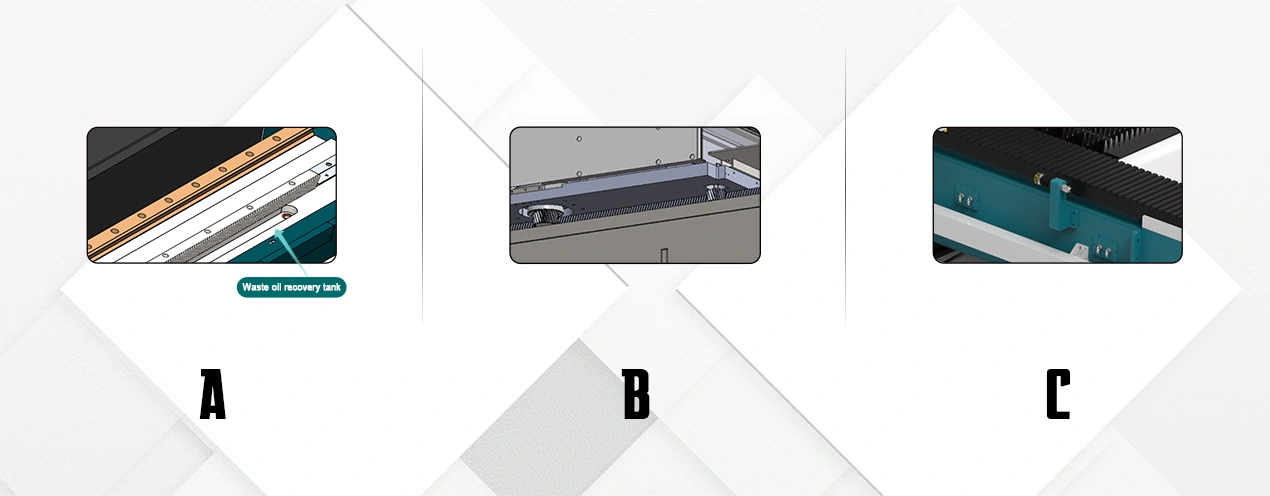

A： The waste lubricating oil recovery mechanism is equipped everywhere to prevent the accumulation of lubricating waste oil and cause fire hazards

B： Gear lubrication The felt wheel lubrication is standard, which can fully lubricate the gears and improve the service life of the gears.

C：The hard limit adopts a buffer structure to prevent the loss of precision caused by collision.

Intelligent Autofocus

The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.


Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.


High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

Transmission And Precision

LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

Independent Control Cabinet

Dust-proof
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat

The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive  temperature damage to components in summer.

LX6020F Sheet Metal Plate Fiber Laser Cutting Machine Application:

Application Materials:

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

For the laser cutting machine we have professional after sale online helping , if you have some problem can’t solved online our engineer can go your factory solved it.
