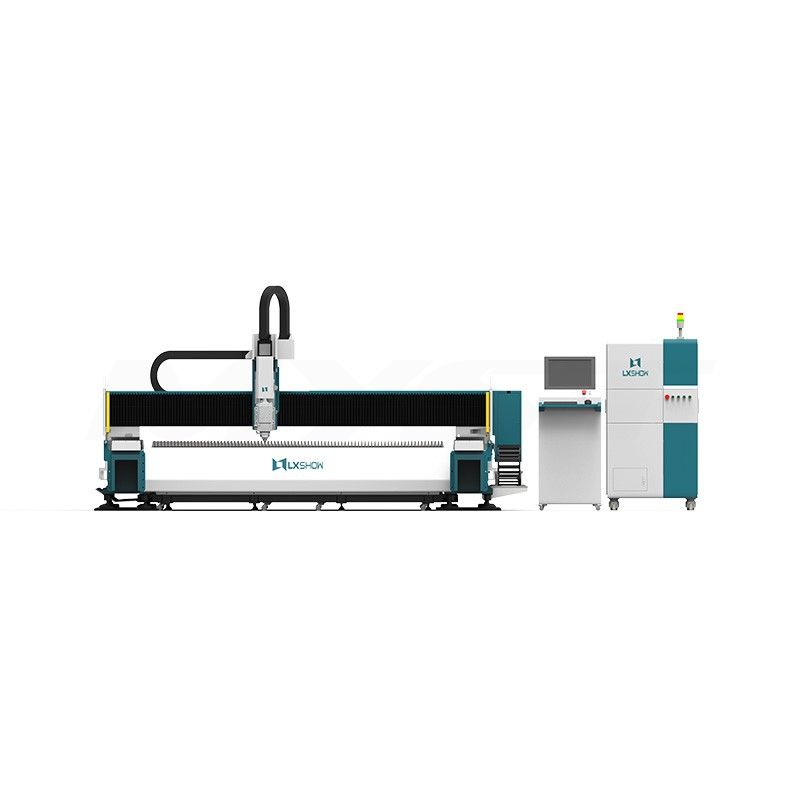

LX12025LD High Power Metal Plate Fiber Laser Cutting Machine 8000W 12000W 20000W
LXSHOW LASER LX12025LD is a product specially designed for sheet metal fiber laser cutting machine. It has stronger cutting ability and higher cutting precision. Do you want to know more about it? The product details page below can help you.
A: The triangular beam with super large section can maximize the rigidity of the beam while reducing the weight of the beam.
B: The gantry can be delivered modularly without disassembling the beam to avoid the loss of precision caused by the disassembly of the beam.
C:Equipped with light curtain protection to prevent the machine gantry from colliding with workers.
D:With the self-adaptive adjustment function on the left and right sides of the gantry, even if there is an error in the on-site assembly accuracy of the customer, the self-adaptive adjustment function can ensure the cutting accuracy to the greatest extent.
1.Full 360° strong adsorption 2.Fully enclosed smoke control 3.Automatically senses cutting head position
In the dust area, the waste trolley and the middle partition form a closed environment, and the air valve is used for partition dust removal, and the sealing performance is good, ensuring that the large-format open model machine still has a strong dust removal effect.
Modular design of blade components, multi-point support for thick plates, higher load-bearing performance, and reduced maintenance and replacement costs in the later period
Thick plates are used in the middle of the platform to bear the load. After the material is loaded, the load-bearing of the plate directly acts on the whole bed, and the overall load-bearing capacity of the machine is twice that of the corresponding machine in the same industry. At the same time, the middle thick plate support has the advantages of small heating area and large heat dissipation area, so as to avoid thermal deformation of the platform.
The Z-axis adopts a fully enclosed design, which effectively prevents cutting dust from entering the Z-axis screw and improves the service life of the screw.
A: The waste lubricating oil recovery mechanism is equipped everywhere to prevent the accumulation of lubricating waste oil and cause fire hazards
B: Gear lubrication The felt wheel lubrication is standard, which can fully lubricate the gears and improve the service life of the gears.
C: The hard limit adopts a buffer structure to prevent the loss of precision caused by collision.
LX12025LD High Power Metal Plate Fiber Laser Cutting Machine Application:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Model Number: LX12025LD
Lead time: 20-40 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Payple;L/C
Warranty: 3 years
Shipping: By sea/By land
power of Generator
X/Y-axis Positioning Accuracy
X/Y-axis Repositioning Accuracy
X/Y-axis Max. linkage speed
For the laser cutting machine we have professional after sale online helping , if you have some problem can’t solved online our engineer can go your factory solved it.
