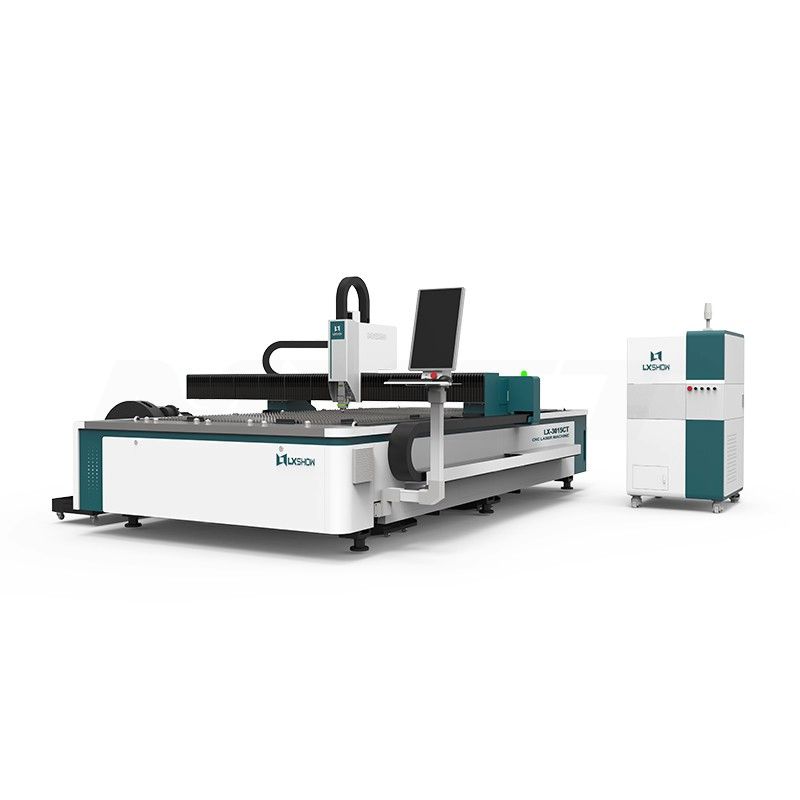

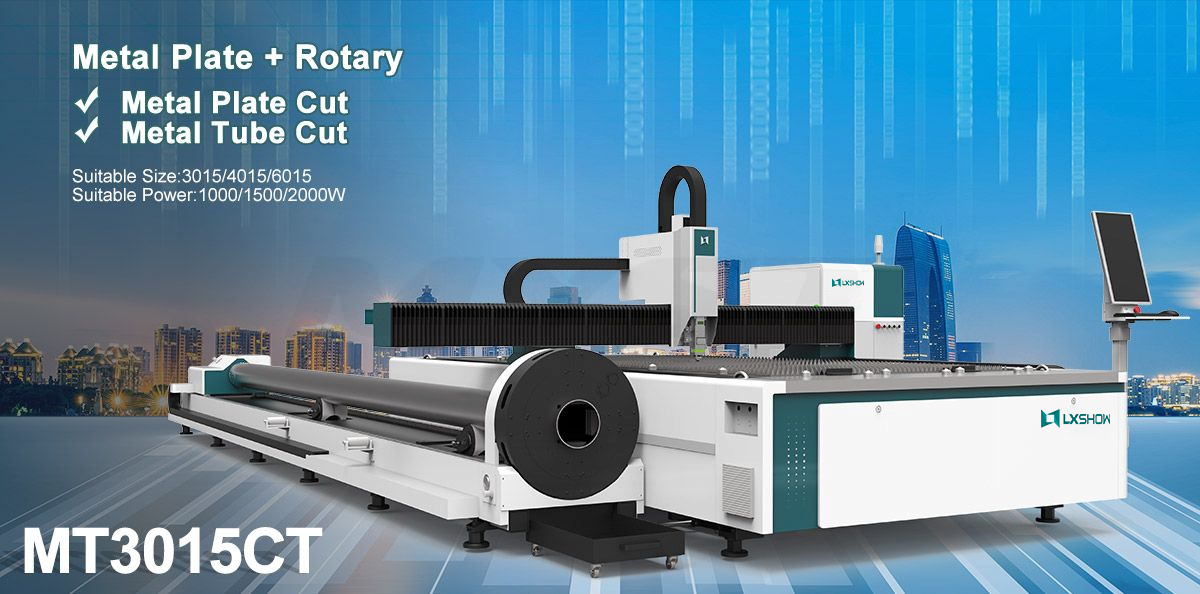

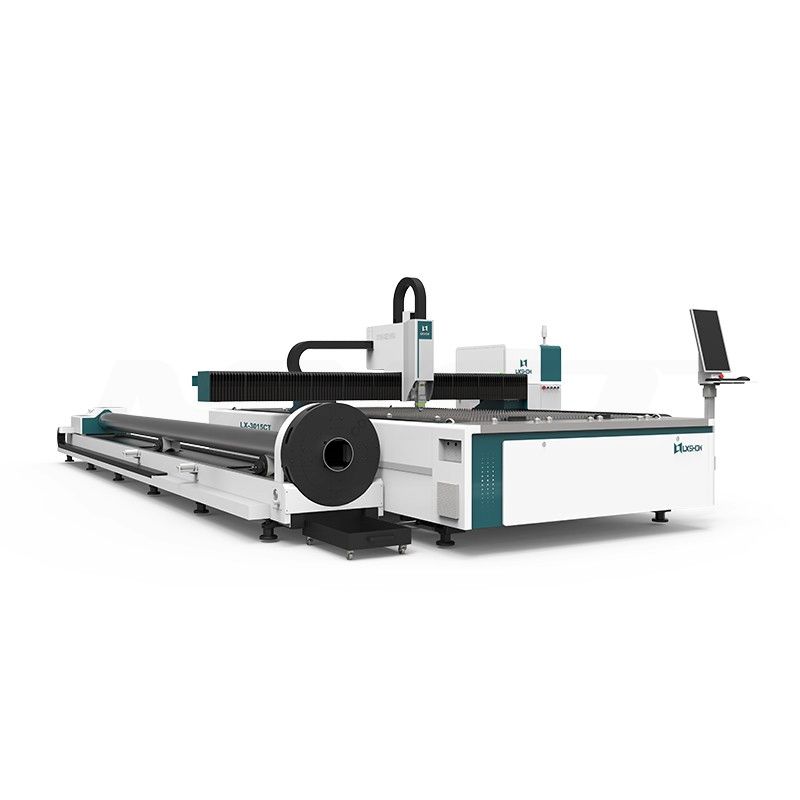

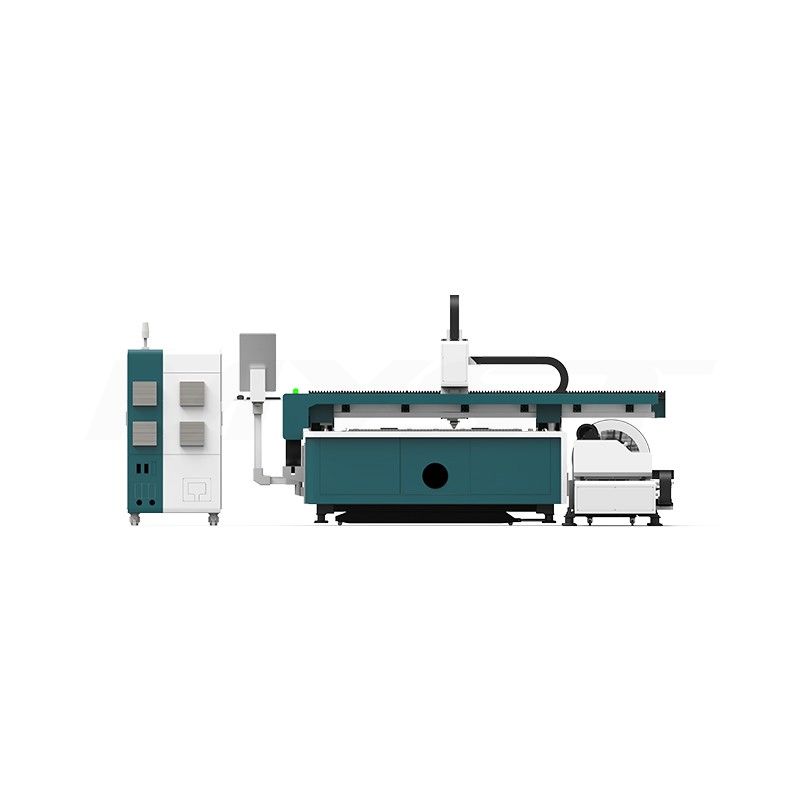

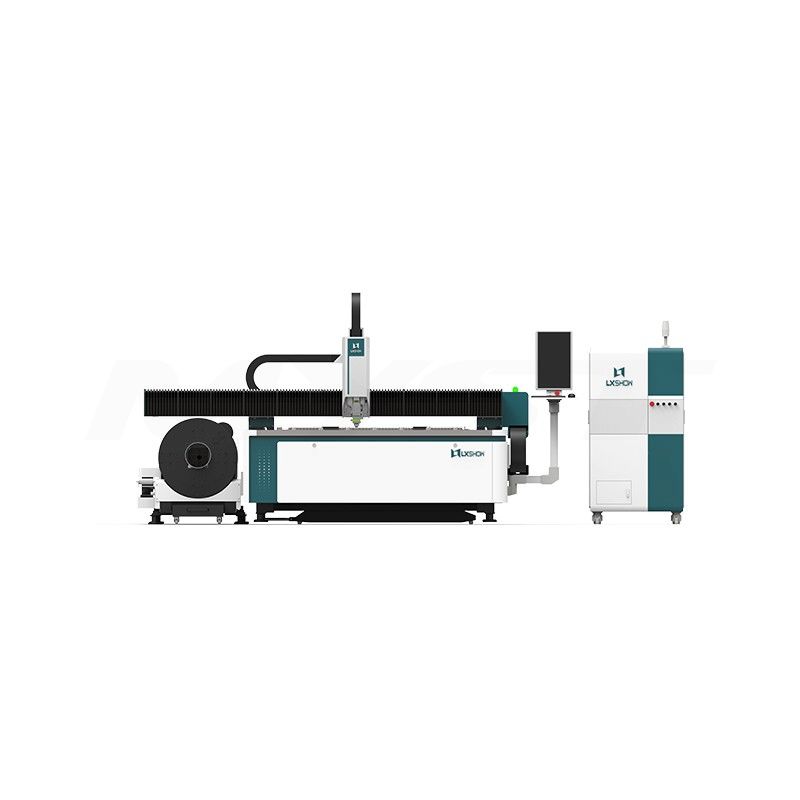

LX3015CT best optic desktop metal sheet plate and pipe fiber laser cutting machine 2000w 3000W 4000W 6000w 8000w 12000W for sale
LXSHOW LASER LX3015CT is a product specially designed for sheet metal laser cutting machine. It has stronger cutting ability and higher cutting precision. Do you want to know more about it? The product details page below can help you.
Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Steel Plate Weld Machine Frame
It is welded by heavy steel plate, the current mainstream bed structure, high stability;
Effect force annealing treatment, high mechanical strength, not easy to deform;
Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed;
The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.
MYST fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.

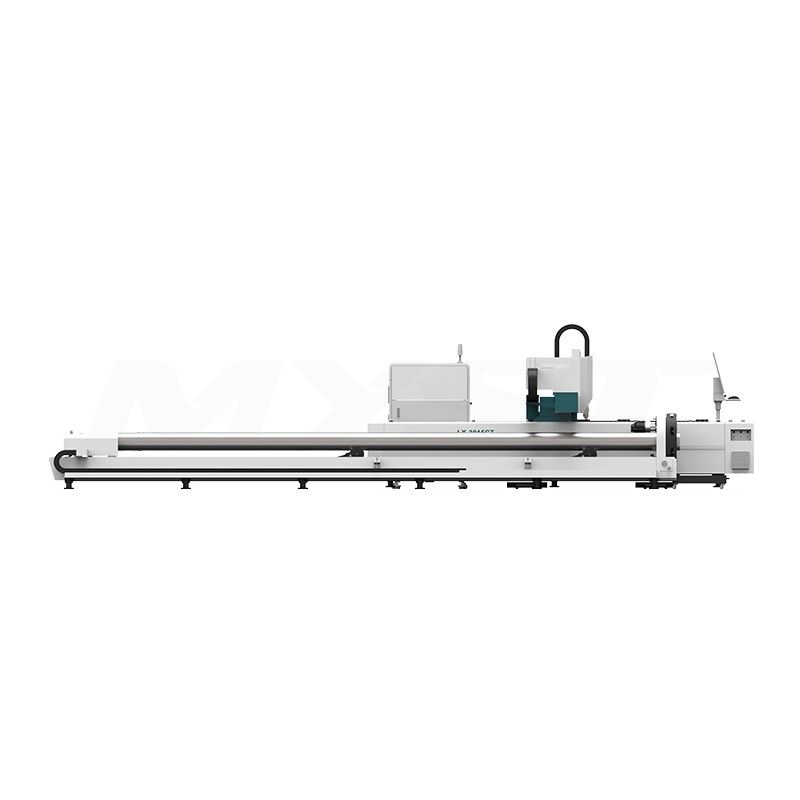

Rotary Length:6m standard,8m and other size can be customized.
Rotary Diameter:160/220mm is standard. Other size can be customized.
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Pneumatic Chuck Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting
Suitable Power:1000-3000w(4000w optional)
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
Independent Control Cabinet
All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer
LX3015CT 2kw 3kw 4kw 6kw stainless steel iron ss metal sheet and pipe fiber laser cutting machine Application:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Titanium, etc.
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
FOB Reference Price Range USD: 20000-50000
Lead time:15-25 working days(About)
Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.
Shipping:By sea/By land
Power of Generator
1500*3000mm(Other size can be customized)
Repeated Positioning Accuracy
Max Running Speed
Specified Voltage And Frequency
For the laser cutting machine we have professional after sale online helping , if you have some problem can’t solved online our engineer can go your factory solved it.
