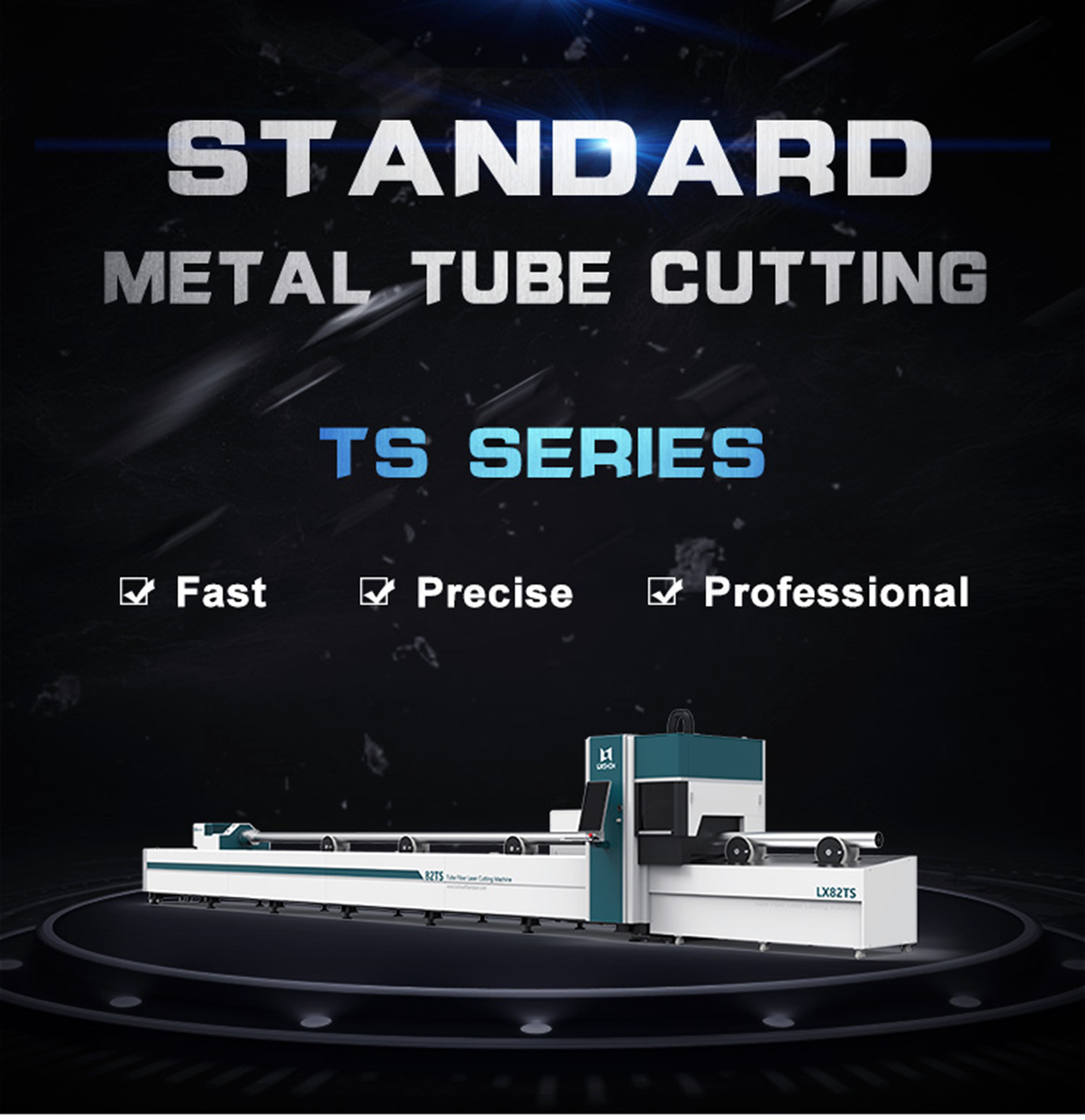

LX82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW

FOB Reference Price Range USD: 20000-80000

Model Number:LX82TS(LX62TS optional)

Lead time:10-25 working days

Payment Term:T/T;Alibaba trade assurance;West Union;Payple;L/C.

Machine Size:11340*1560*1615mm (About)

Machine weight:8000KG

Brand:LXSHOW

Warranty:3 years

Shipping:By sea/By land


Rating:
Price range: USD: 20000-80000

Customer Service Hotline

+8613256742787

  • Product Description

  • Video

  • Parameters

  • Samples

  • How Order

LX82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


The Segmented Rectangle Laser Tube Welded Bed

Good rigidity, high precision, no deformation during the life cycle;

Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


Suitable Power:1000-3000w(4000w optional)

Brand:IPG/Raycus/MAX/JPT/Nlight


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


Pneumatic Chunk Clamping Design

It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


Fractional Automatic Support Installation

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


The Absolute Value Servo Motor

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


BM109 tube cutting and cutting series is an automatic focusing tube cutting fiber cutting head launched by Swiss RAYTOOLS AG in 2019. The product is equipped with a slender TRA component and a slender nozzle, which can adapt to any complicated pipe cutting product working conditions, and has a built-in motor drive unit. The focus lens is driven by a linear mechanism to automatically change the position within a range of 17mm. The user can set it through the program Fixed and continuous focusing, complete quick perforation and automatic cutting of pipes of different thicknesses and materials; this product is equipped with D28 compound lens group to integrate the beam, and the optimized optical and water-cooled design enables the laser head to work continuously and stably for a long time.


MT82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


LX82TS Aluminum stainless steel carbon steel copper fiber laser cutting machine Application:

Application Materials:

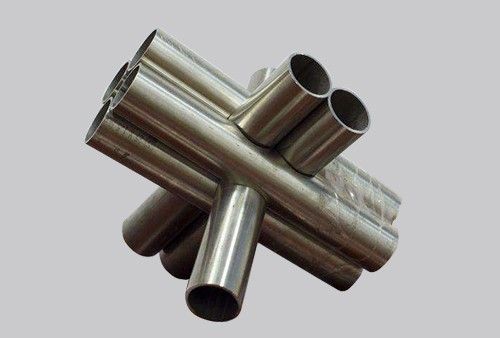

Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe,  Titanium Pipe, Metal Tube, Metal Pipe, etc.

Application Industries:

Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.


LX82TS Round Square tube ss cs aluminum metal pipe tube fiber laser cutter 1KW 1.5KW 2KW 3KW 4KW 6KW 8KW 12KW


Related News

Introduction

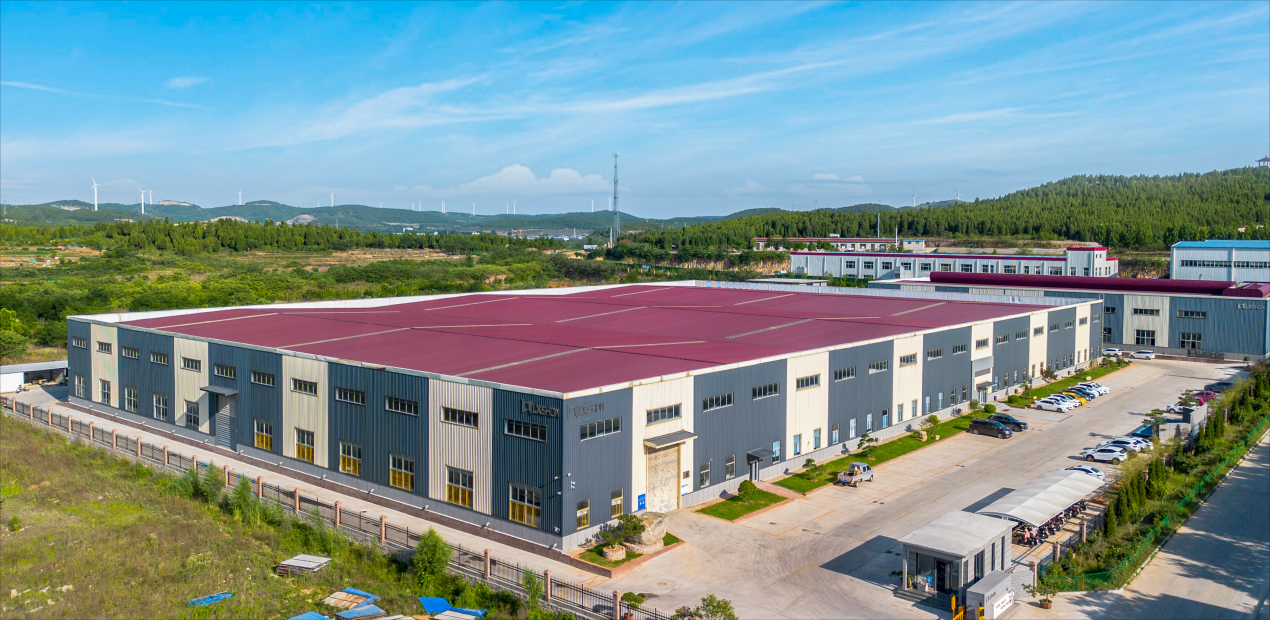

JINAN LXSHOW Laser Equipment company is founded in 2004 , After 15 years development now we have more than 30 seniors experts in the laser industry ,200 skilled workers, 85 sales ,120 after sales, 30000 square meters factory, Exported to more than 120 countries and regions ,OEM service for more than 30 manufactures .

As a leader in laser smart equipment we focused on providing great technical support and we have one professional laser cutting machine and laser marking machine communication Center. we will build our industry 4.0 and future plants, helping companies to build smart manufacturing and enabling smart manufacturing .Our company's values are customer-centric, strive-oriented, continuous innovation, and realize company  value and employee dreams.

Our Products are widely used in the steel industry, packaging industry, craft gifts, automotive industry, jewelry industry, aerospace industry, machinery manufacturing industry, mold industry, integrated circuit industry, semiconductor industry, plastics and rubber industries.
