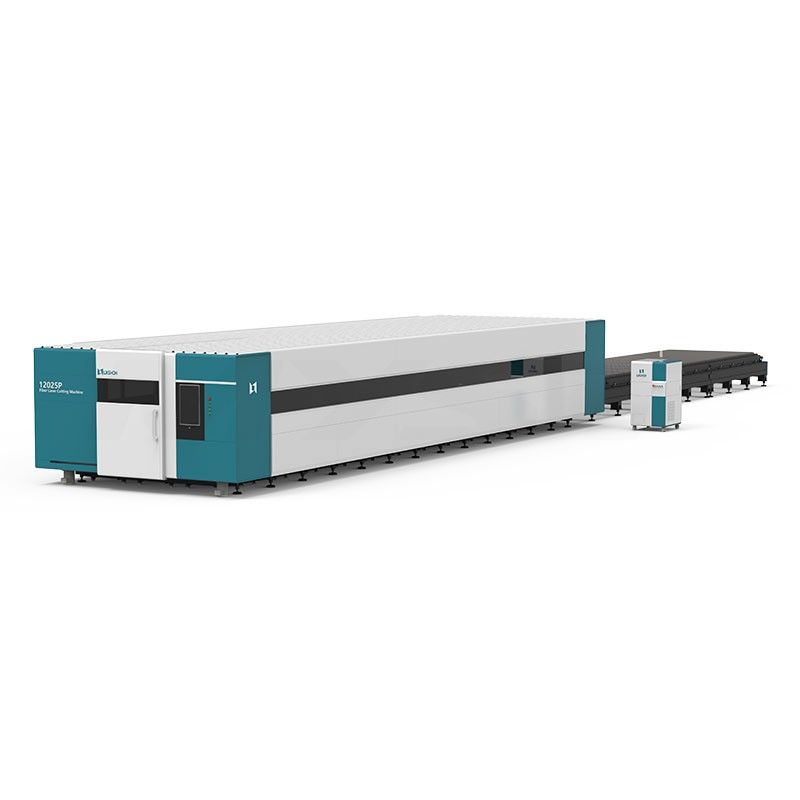

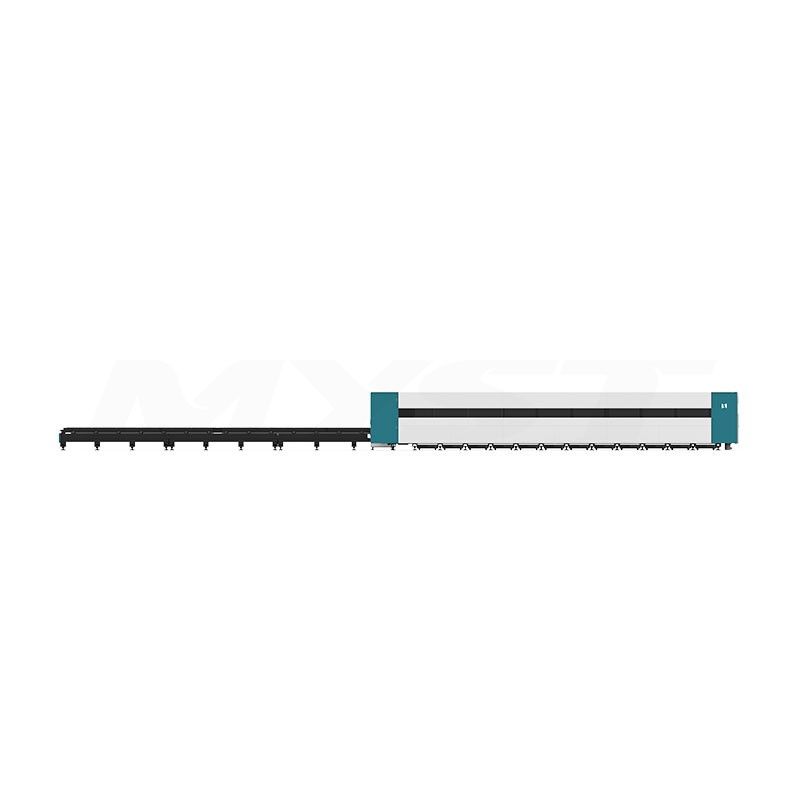

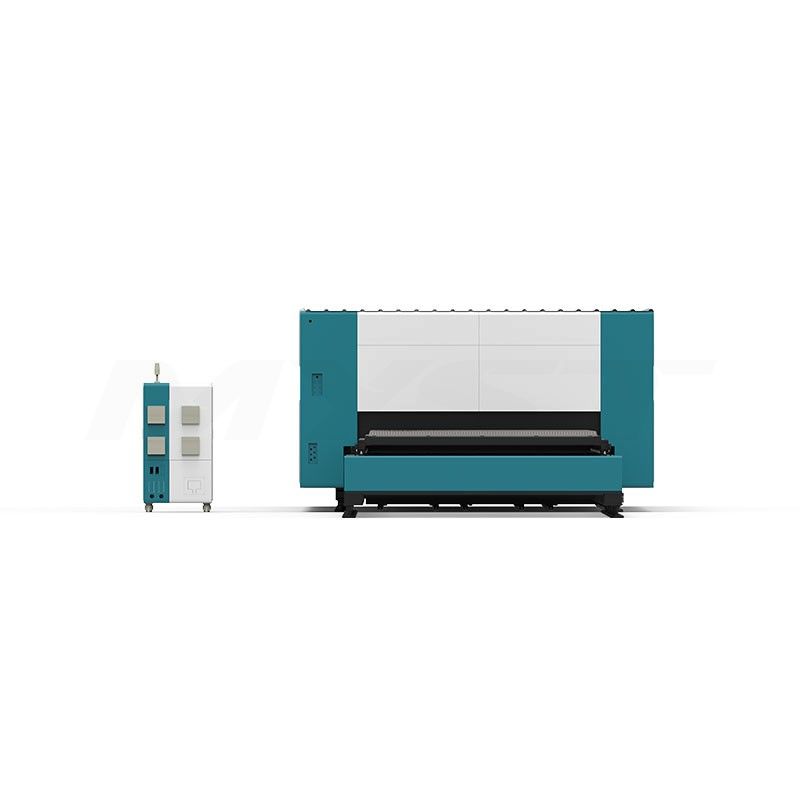

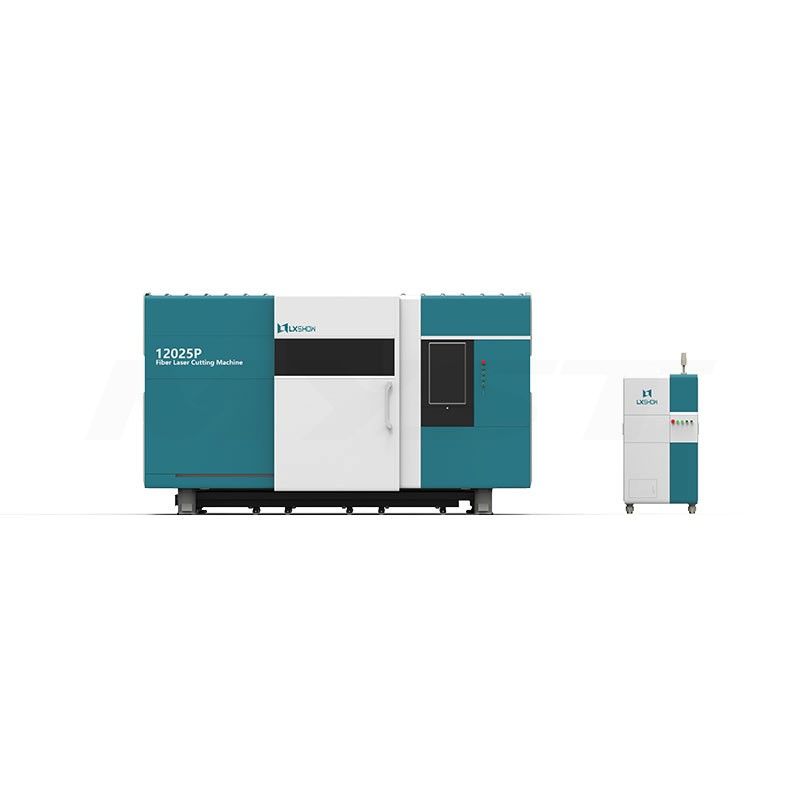

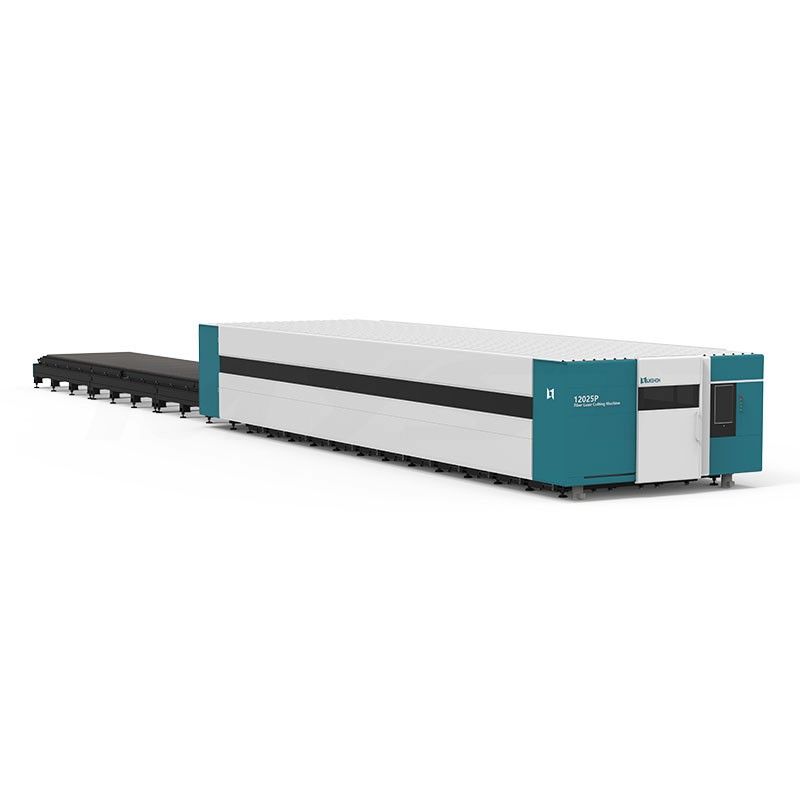

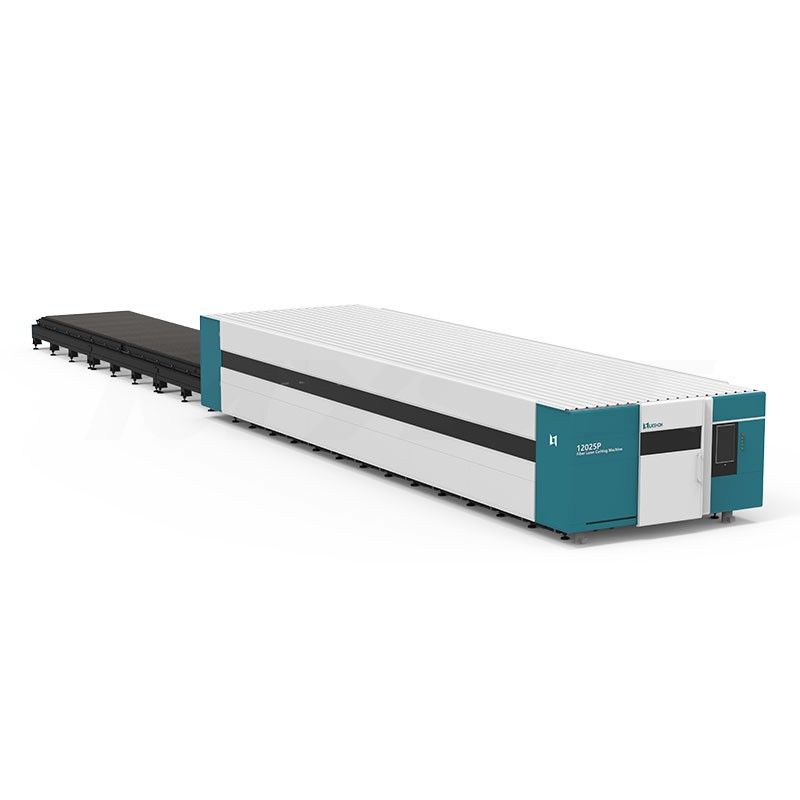

LX12025P Large Format Exchange Table Full Coverage Heavy Duty Fiber Laser Cutting Machine
LXSHOW LASER LX12025P High Power Sheet Metal Fiber Laser Cutting Machine is a product specially designed for sheet metal laser cutting machine. It has stronger cutting ability and higher cutting precision. Do you want to know more about it? The product details page below can help you.
Machine Model:LX12025P
Power of Generator:3000-40000W
Dimension:27411*4320*2765mm
Working Area:2500*12000mm
Repeated Positioning Accuracy:±0.02mm
Max Running Speed:160m/min
Max Acceleration:2G
Specified Voltage And Frequency:380V 50/60HZ

High Power Sheet Metal Fiber Laser Cutting Machine Safety and Environment Protection
• With a fully enclosed design;
• The observation window adopts an European CE Standard laser protective glass;
• The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;
Monitoring system
Real-time observe the machine running through the panel
Brand New Cast Aluminum Beam
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
1.Heavy-duty plate welding hollow bed, small thermal deformation and stable machine.
2.The whole machine has three layers of protection, graphite plate, copper plate and fire-proof brick to prevent the bed from being deformed by heat.
3.The middle of the platform is connected by a 30mm thick plate and protected by a graphite plate to prevent the deformation of the high-power platform caused by cutting and insufficient load-bearing.
4.The platform frame adopts the overall frame + small grouping design, which improves the bearing capacity of the platform and facilitates later maintenance and replacement.
Independent Control Cabinet
Dust-proof
•All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.
Automatic Thermostat
•The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
Intelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.
Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.
Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.
High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.
LX12025P China best high power metal sheet plate enclosed fiber laser cutting machine stainless steel Application:
Application Materials:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
-
