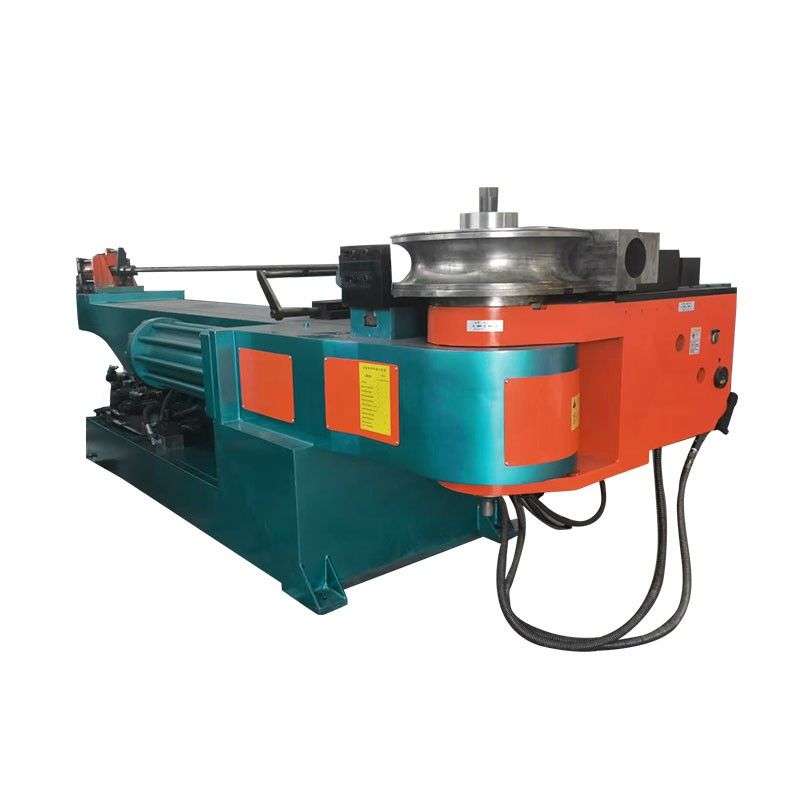

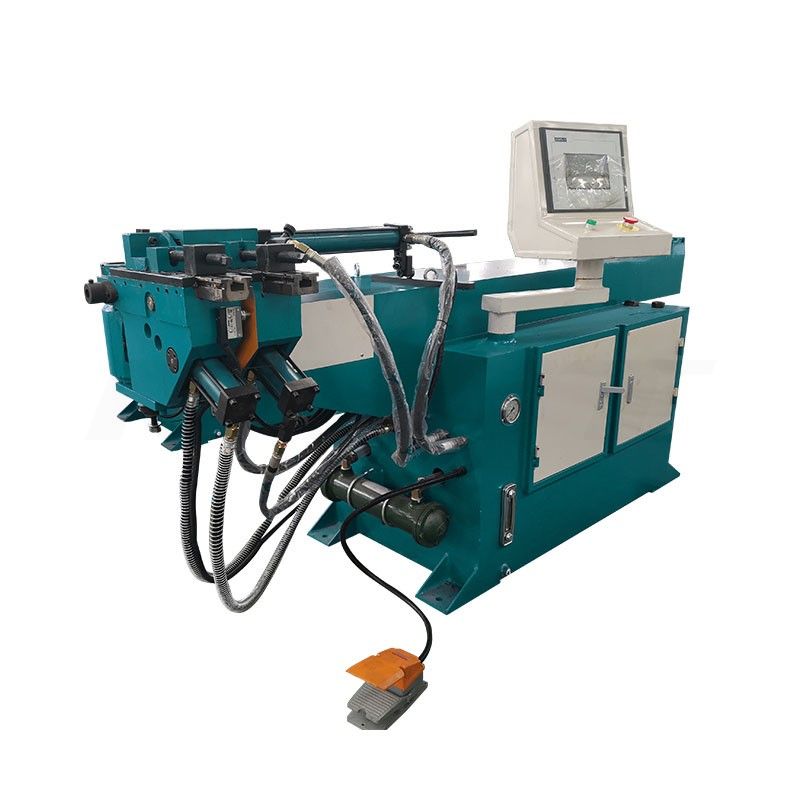

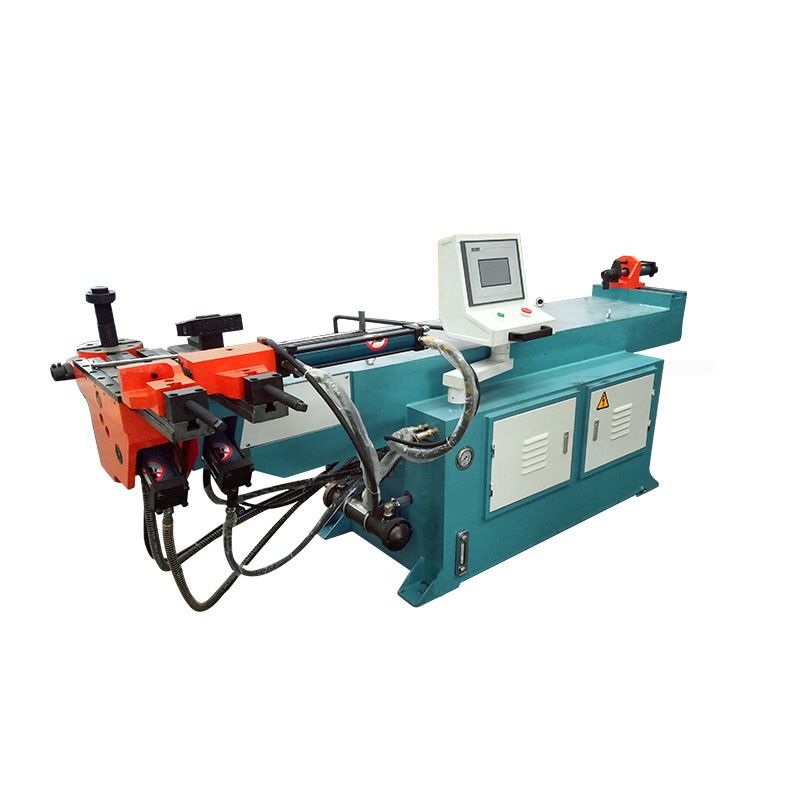

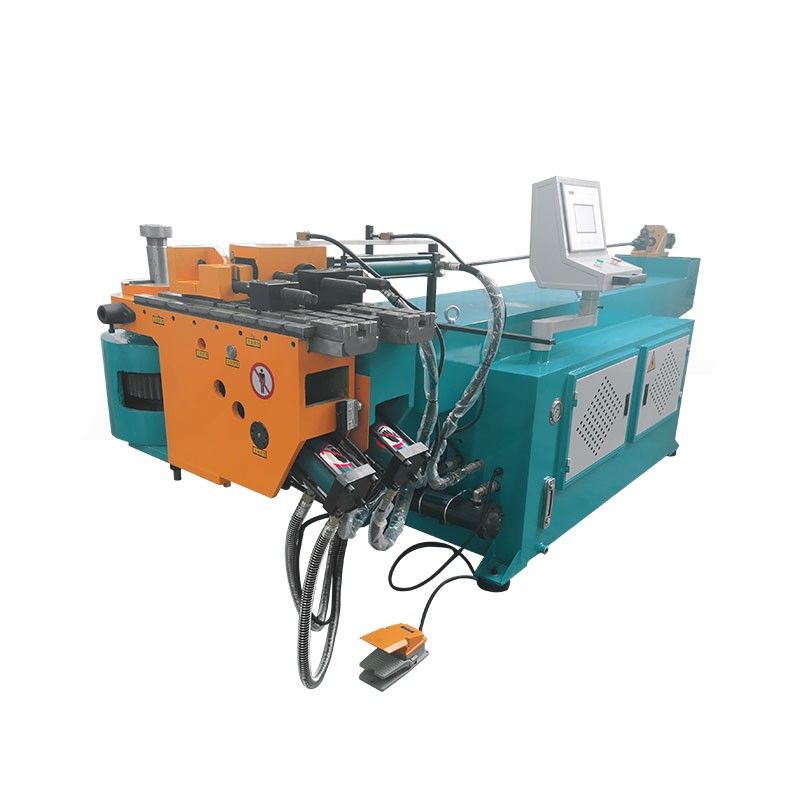

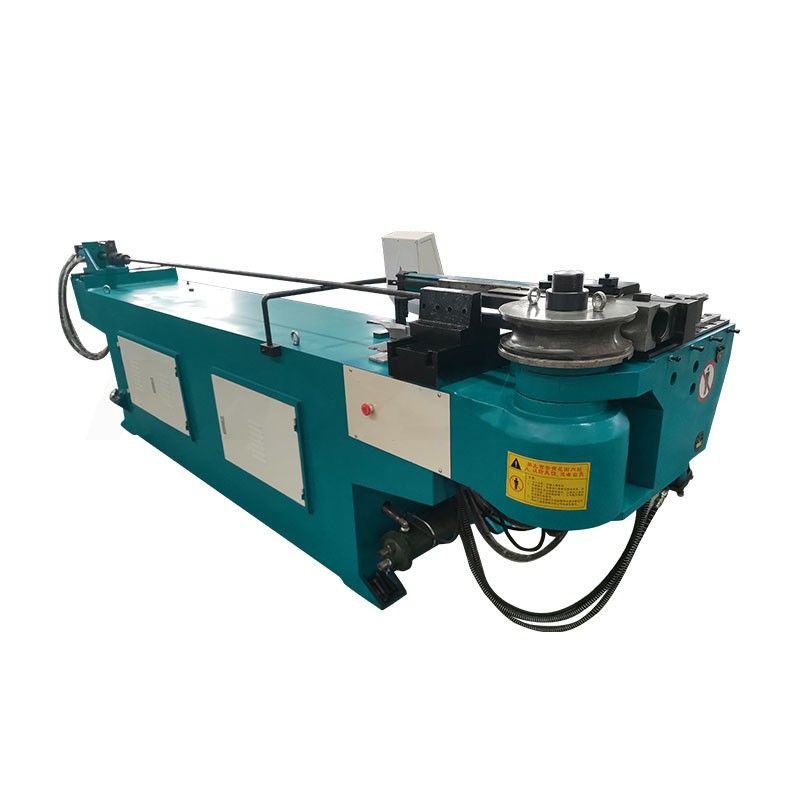

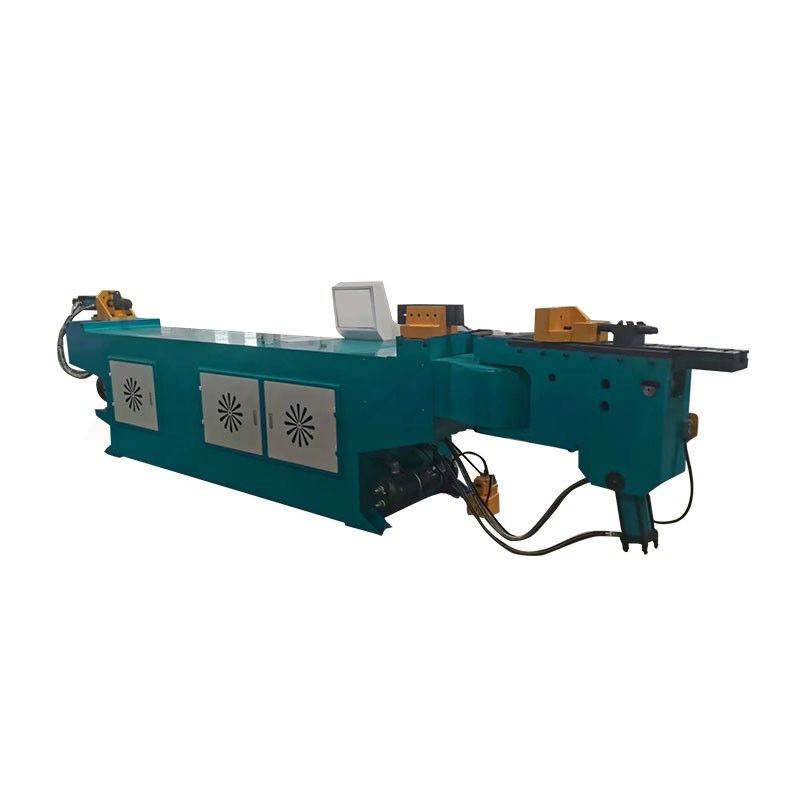

NC Hydraulic Pipe Bending Machine | LXSHOW
Hydraulic pipe bender is a common pipe processing equipment, mainly used to bend steel pipes and profiles of various sizes.
Its working principle is mainly based on hydraulic technology and bending forming technology.
Hydraulic pipe bender is mainly composed of frame, hydraulic system, bending system and control system.
Advantages of NC hydraulic tube bending machine
Single chip microcomputer control system.
The main parts are imported electrical components, and the user program does not need to be kept by a separate battery and will never be lost.
It has automatic counting function, automatic core pulling and anti-wrinkle device.
It can store multiple sets of processing modes and is flexible between programs of different specifications.
The mobile foot switch has three functions: automatic start, emergency stop, and emergency stop and continue.
The bending angle uses an encoder to track and feedback information, and the bending angle has high accuracy.

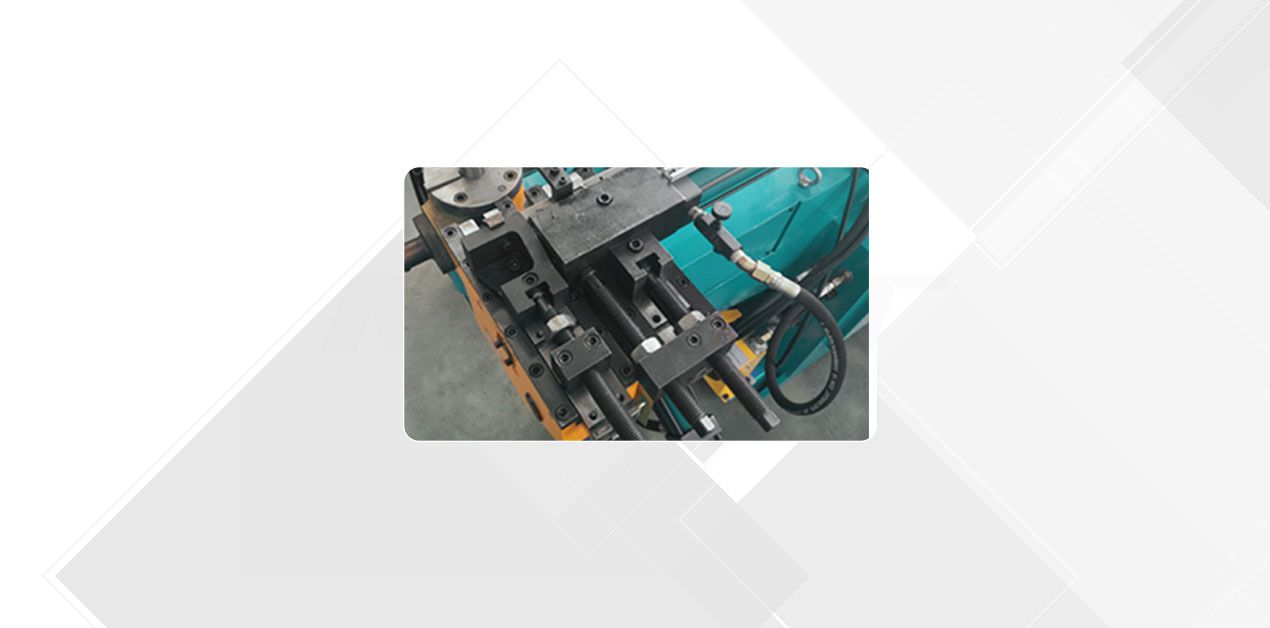

Clamping mechanism
The clamping mechanism of the pipe bending machine is a key component used to fix the pipe and ensure that the pipe will not move or rotate during the bending process.

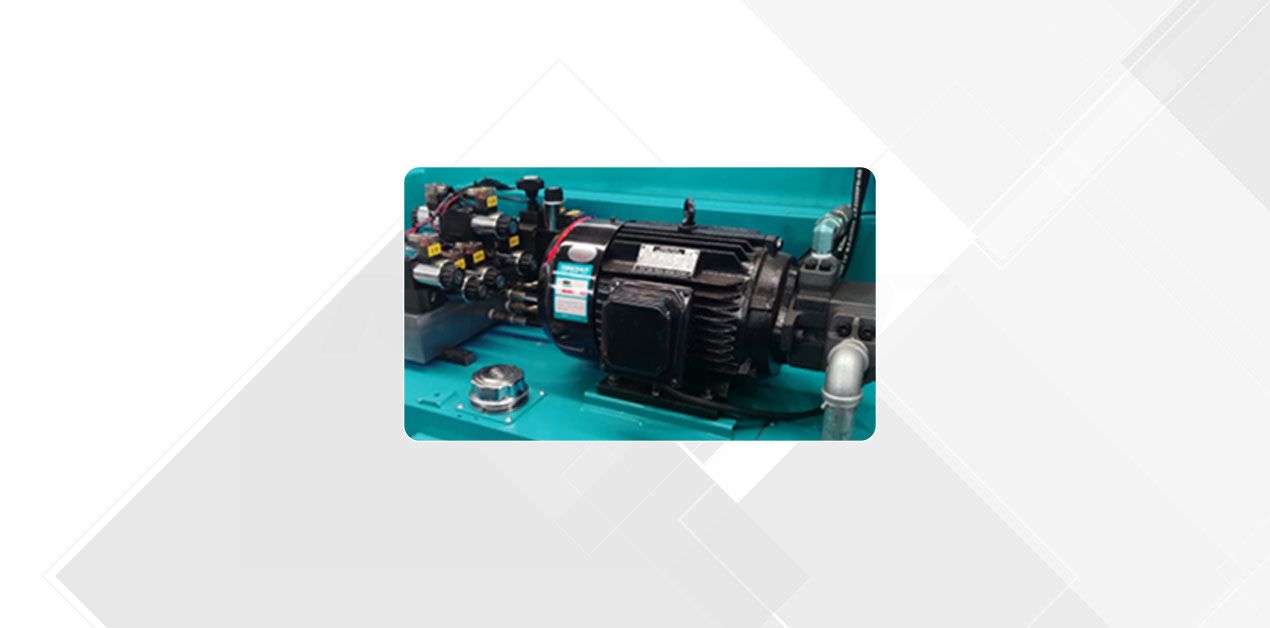

Oil pump motor
The oil pump motor of the pipe bending machine is the core component that provides power to the hydraulic system.
It is responsible for driving the oil pump and converting mechanical energy into hydraulic energy to achieve precise bending of the pipe.

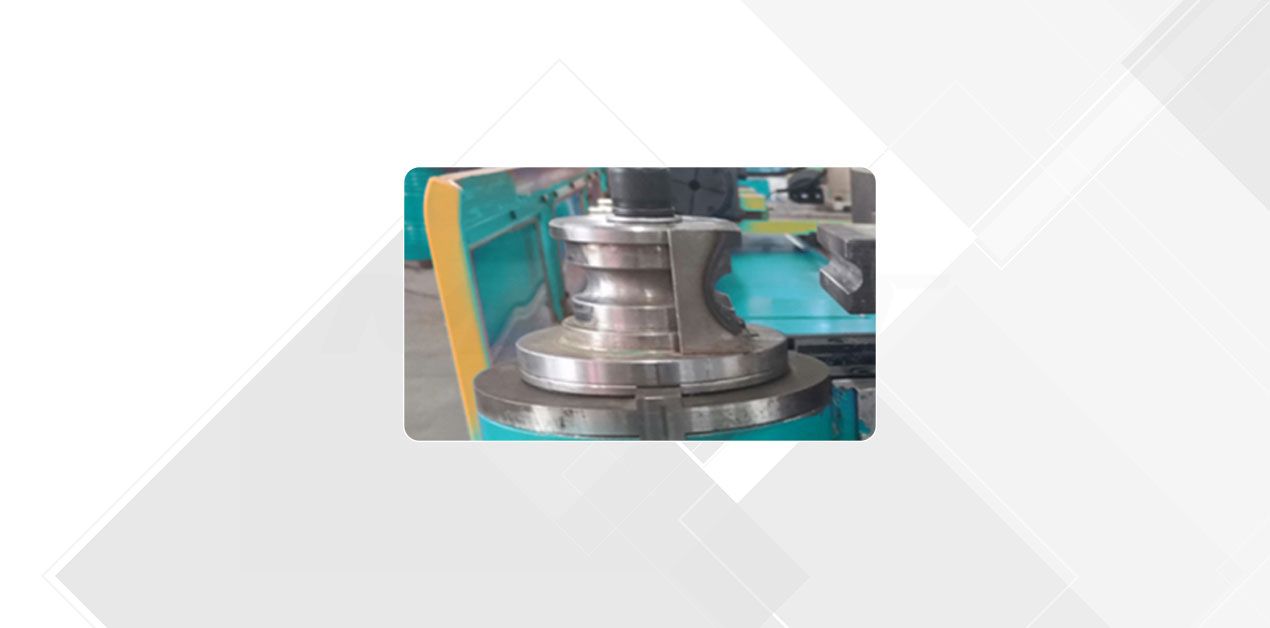

Mould
The mold of the pipe bending machine is a special tool used to define the bending shape and size of the pipe. It controls the bending radius and
angle by designing the contact surface with the pipe to ensure that the bent pipe meets the predetermined specifications.

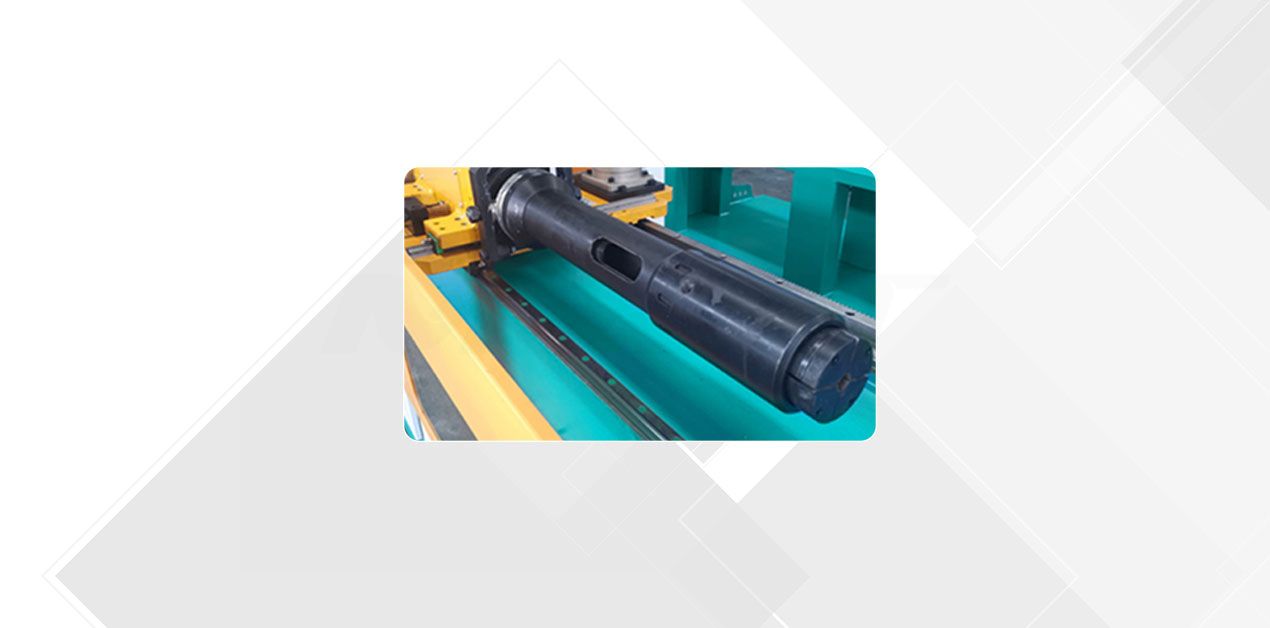

Feeding device
The feeding device of the pipe bending machine is a key component used to transfer the pipe from the feeding device to the bending mechanism.
It clamps the pipe to be processed and pushes the pipe to move along a predetermined path to achieve continuous bending of the pipe.
