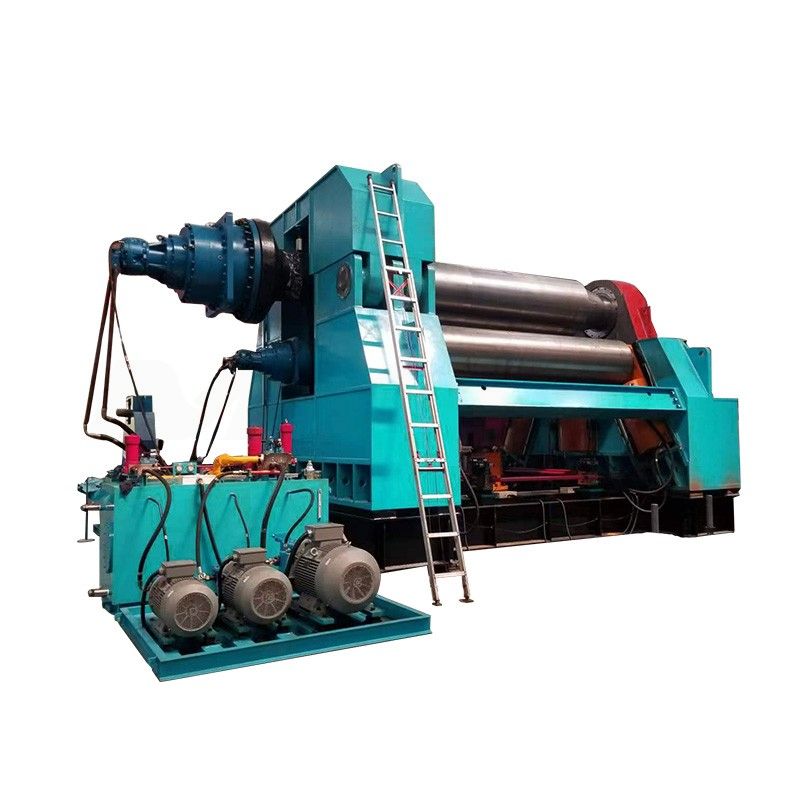

Four-Roll Plate Rolling Machine For Carbon Steel, Stainless Steel, Copper Aluminum

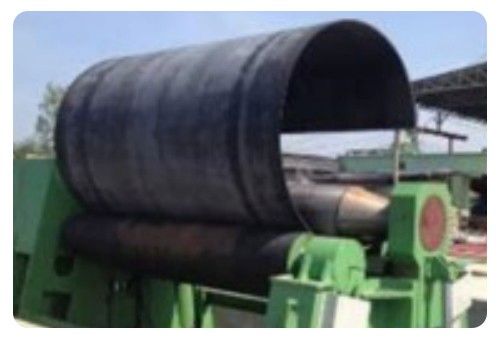

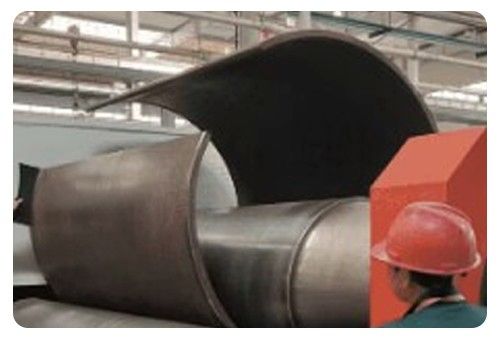

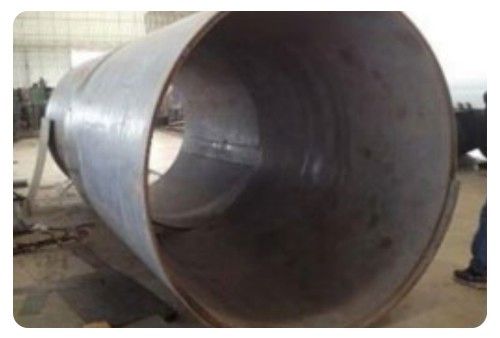

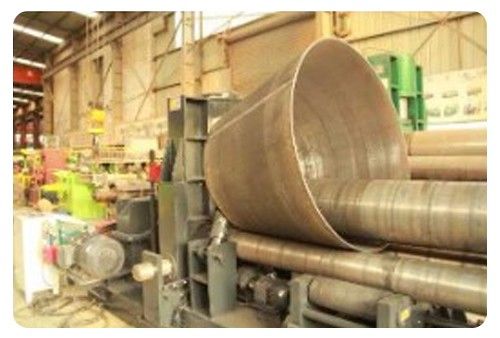

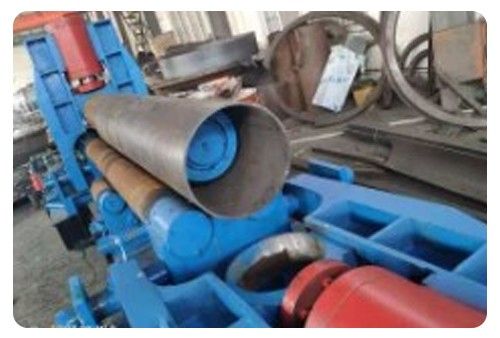

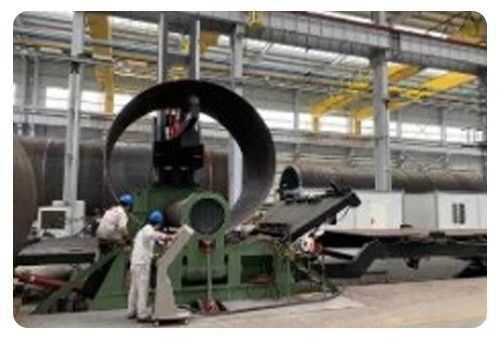

The plate rolling machine is a kind of equipment that uses work rolls to bend and form the sheet metal. It can form parts of different shapes such as cylindrical parts and conical parts. It is a very important processing equipment.
Application industry:
Aerospace, shipbuilding, energy industry, wind tower industry.
Application materials:
carbon steel, stainless steel, copper, aluminum, high carbon steel and other metals

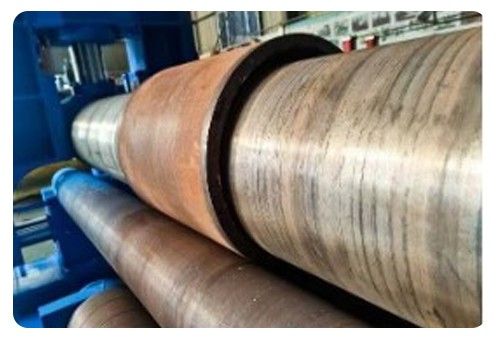

Working Roller (42crmo):
1. Hollow roller (for thinner materials, it is recommended to recommend less than 6 thick plates)
2. Solid roller (for thicker materials)
Hydraulic Pump:
Screw(Consumables, 3 years service life):
The screw height adjustment mechanism is a mechanism that canadjust the height through a screw. The mechanism is composed of a screw and a nut.By rotating the screw,then utisdriven to move up and down,so as to realize the height adjustment of the working surface such as the
workbench.
Electrical Components (Siemens):
Lifting Worm Assembly: Lifting freely,flexible operation performance
Hydraulic System (Nok, Japan for hydraulic):
Ensure that there is no leakage point in static ordynamic work,and achieve stable dynamic operation without shock, crawl. It is required that the valve group has large flow rate, small resistance, small pressure loss and low heat generation.
Hydraulic Motor(failure-prone parts): Easy installation,easy adjustment,excellent performance,complete solutions
Reducer(failure-prone parts):
The lowest backlash.
The maximum output torque.
The highest torsion rigidity
High efficiency high quality low noise,lift time lubrication
High precision,longlife
Cylinder:
