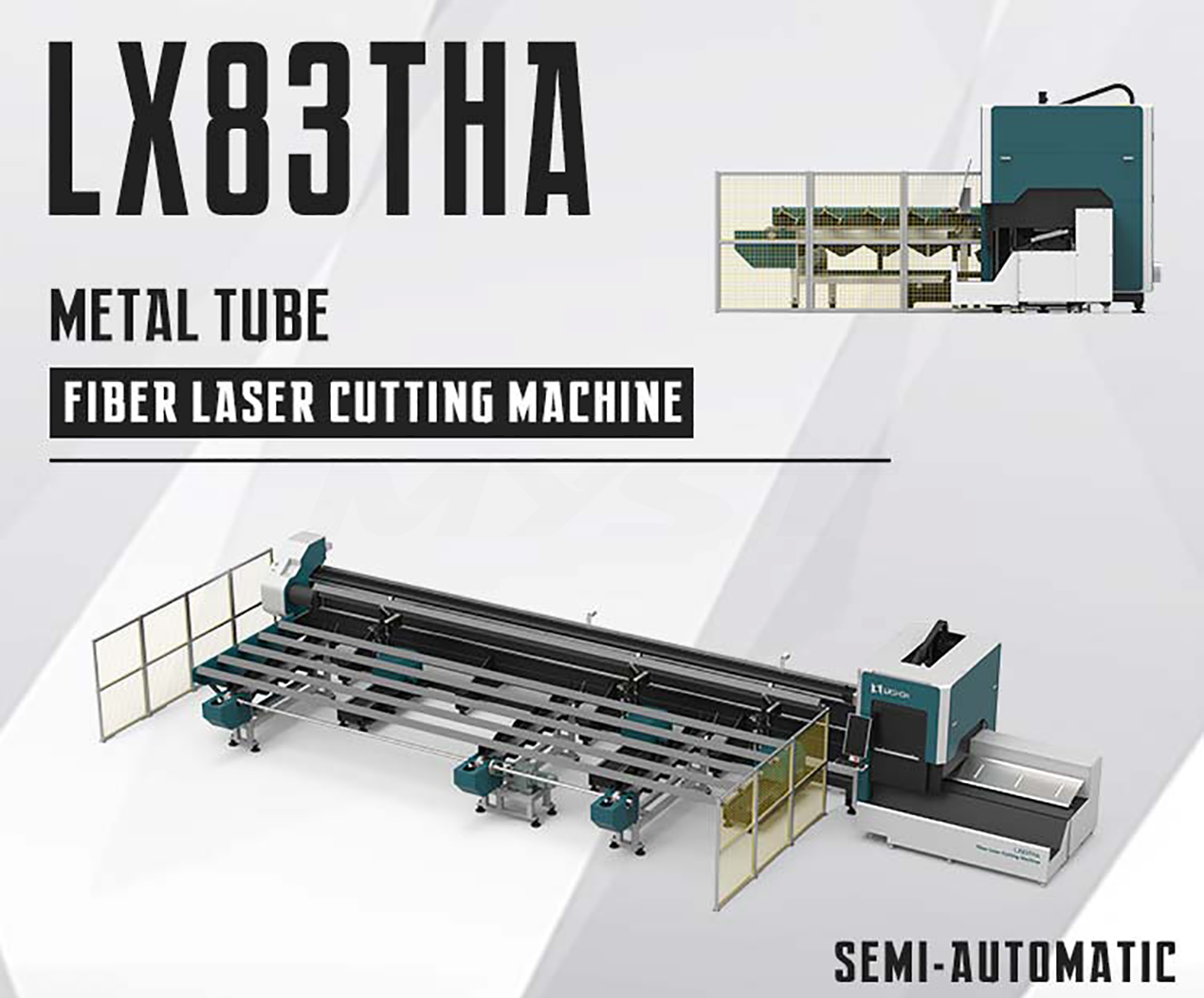

LX83THA Best Automatic Loading and Unloading Metal Steel Fiber Laser Tube Cutting Machine SS Aluminum Copper for Sale
LXSHOW LASER LX83THA is a product specially designed for tube metal laser cutting machine. It has stronger cutting ability and higher cutting precision. Do you want to know more about it? The product details page below can help you.

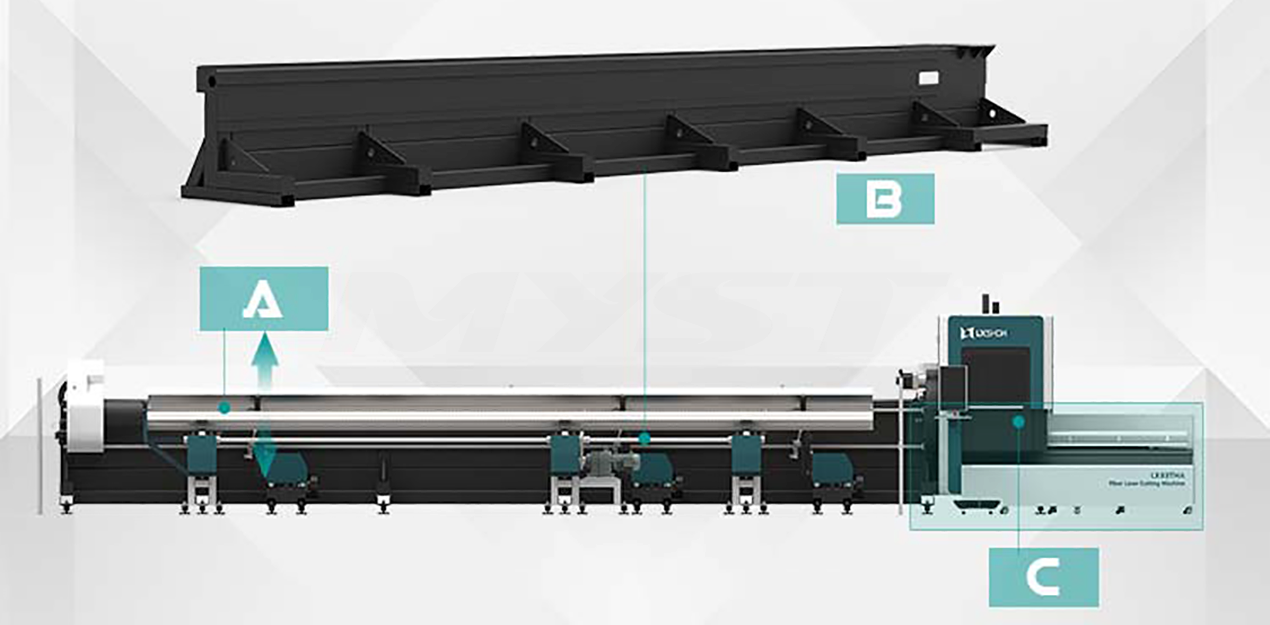

A. Semi-enclosed design, equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers.
B. Heavy-duty welded bed, it can meet the high-speed operation of the machine without shaking.
C. The front end of the machine is surrounded by desian to improve the dust removal effect.

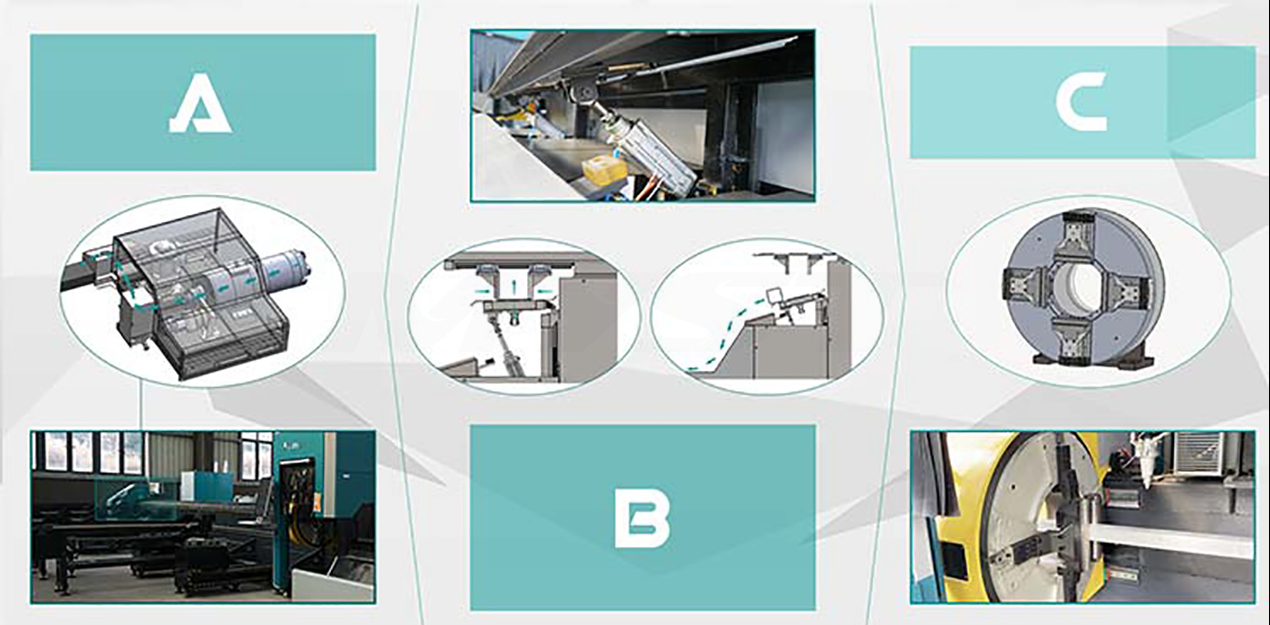

A. Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step,level processing.
The rear chuck equipped with a waste collection system.
B. Follow-up support component system. During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation.
The front end is equipped with front, rear, left and right dual follow-up modules to ensure cutting accuracy, and automatic tilting and blanking settings to prevent pipe scratches.
C. The machine is equipped with Bochu special chuck, which has better dynamic performance speed can reach 80rmin,acceleration can reach 1.5G.

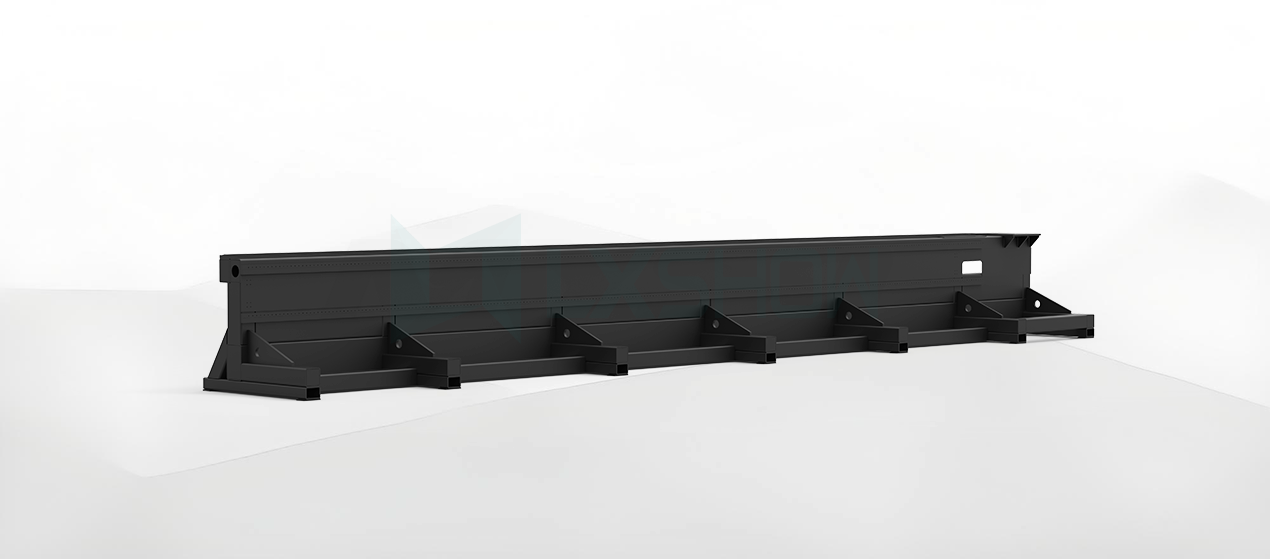

THE SEGMENTED RECTANGLE LASER TUBE WELDED BED
Good rigidity,high precision, no deformation during the life cycle.
Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance.

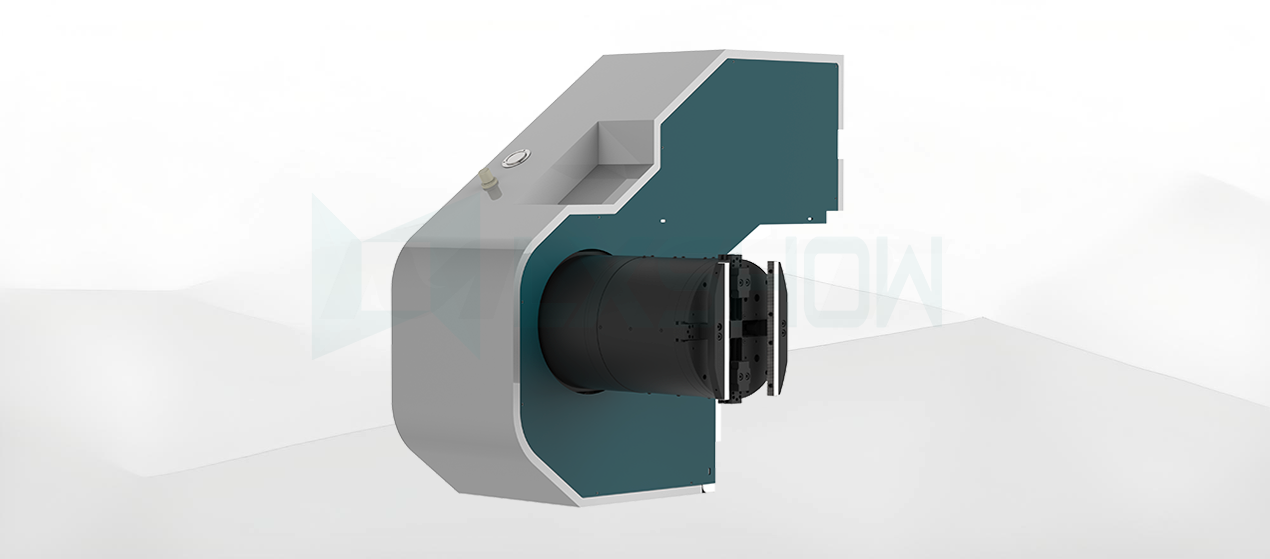

Pneumatic Chuck Clamping Design
It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
Professional Clamp Design
Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.

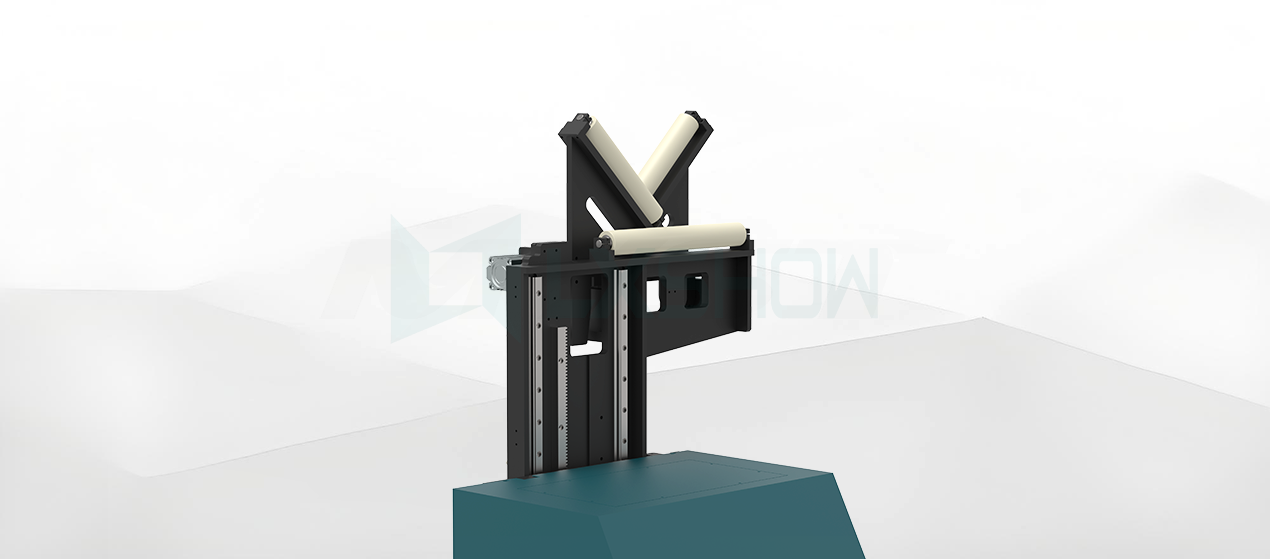

Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting
Intelligent Alarm System
It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment
Stroke intelligent protection
Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk
The Absolute Value Servo Motor
System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation.
LX83THA ss aluminum copper cnc best tube pipe metal steel fiber laser cutting machine Application:
Application Materials:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Tube, Mild Steel Tube, Carbon Steel Tube, Alloy Steel Tube, Spring steel Tube, Iron Pipe, Galvanized Steel Tube, Aluminum Pipe, Copper Tube, Brass Tube, Bronze Pipe, Titanium Pipe, Metal Tube, Metal Pipe, etc.
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Tube Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
