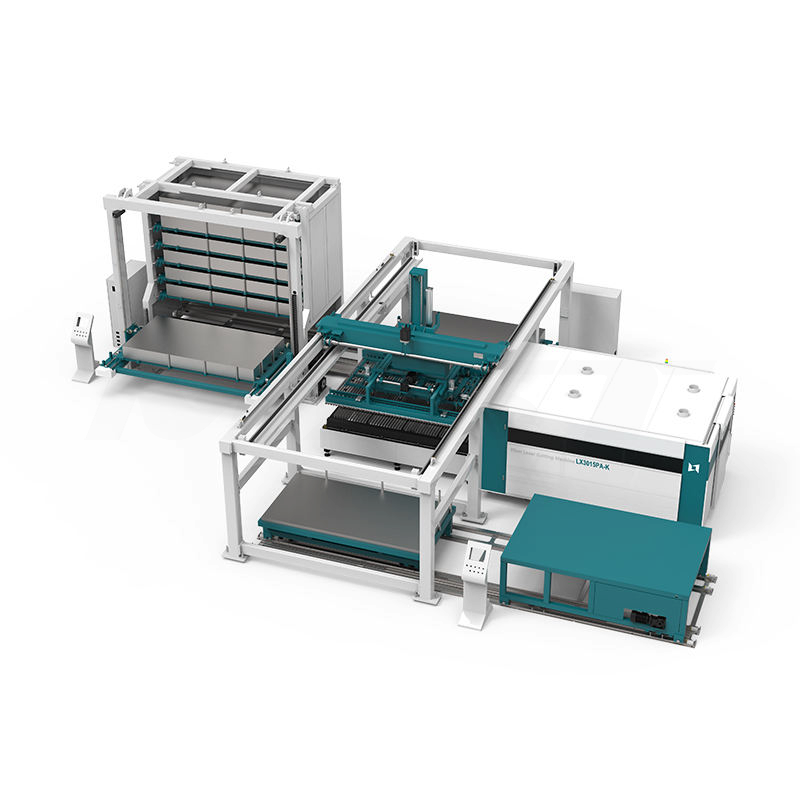

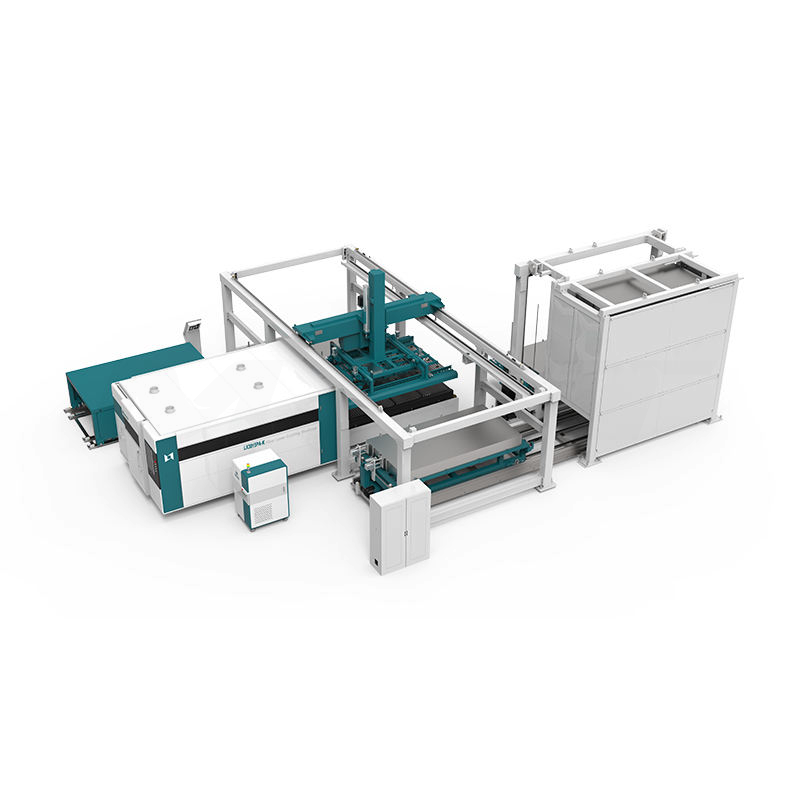

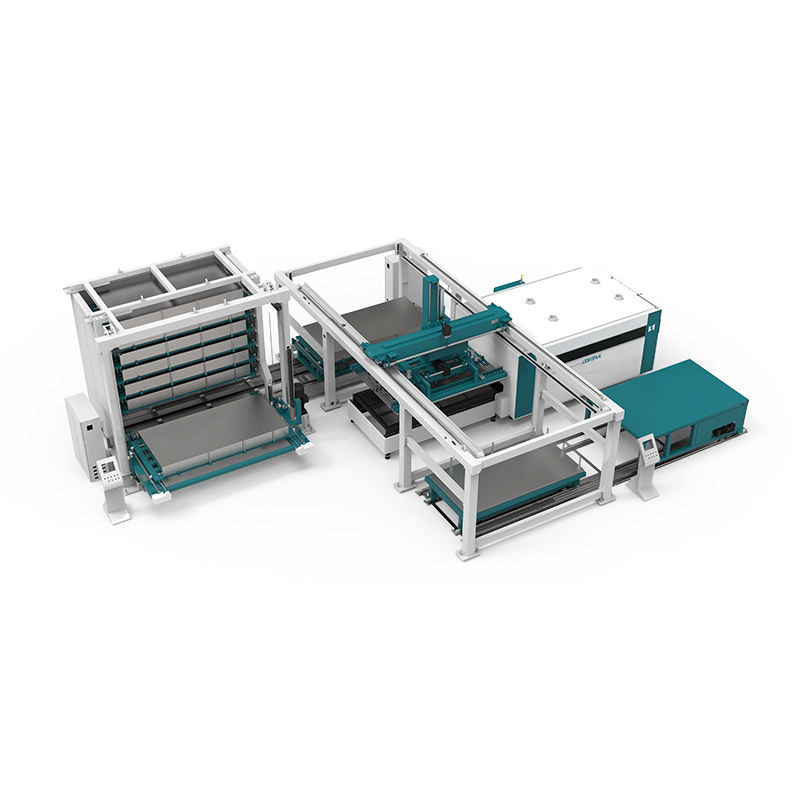

LX3015PA-K Series High-Precision Fiber Laser Cutting Machine Fully Automatic Servo CNC
Model Number: LX3015PA-K
Lead time: 35 working days
Payment Term: T/T;Alibaba trade assurance;West Union;Paypal;L/C.
Machine Size:(About) 4967*8817*2440mm
Brand: LXSHOW
Warranty: 3 years
Shipping: By sea/By land
1.Heavy-duty plate welding hollow bed, small thermal deformation and stable machine.
2.The whole machine has three layers of protection, graphite plate, copper plate and fire-proof brick to prevent the bed from being deformed by heat.
3.The middle of the platform is connected by a 30mm thick plate and protected by a graphite plate to prevent the deformation of the high-power platform caused by cutting and insufficient load-bearing.
4.The platform frame adopts the overall frame + small grouping design, which improves the bearing capacity of the platform and facilitates later maintenance and replacement.
1.The exchange platform adopts double motor and double chain exchange, and the two platforms do not interfere with each other. Avoid jitter caused by the rear platform feeding, which will be transmitted to the front cutting platform through the chain to cause cutting instability. At the same time, each platform supports independent movement, (two platforms can be at the front or at the same time at the same time) to facilitate the later cleaning of internal waste.
2.There are pneumatic positioning tooling before and after the exchange platform to ensure the stability of the platform during the cutting process to the greatest extent.
1.The super-large section aviation aluminum beam reduces the weight of the beam and maximizes the rigidity of the beam.
1.The Z-axis adopts a fully enclosed design, which effectively prevents cutting dust from entering the inside of the Z-axis screw and improves the service life of the screw.
2.The Z-axis support is replaced by the screw drive to the rack drive, which has better dynamic performance.
1.Gear lubrication is equipped with felt wheel lubrication as standard, which can fully lubricate the gears and improve the service life of the gears.
LX3015P 2kw 4kw 6kw 8kw fiber laser cutting machine Application:
Application Materials:
Fiber Laser Metal Cutting Machine is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, etc.
Application Industries:
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
-
