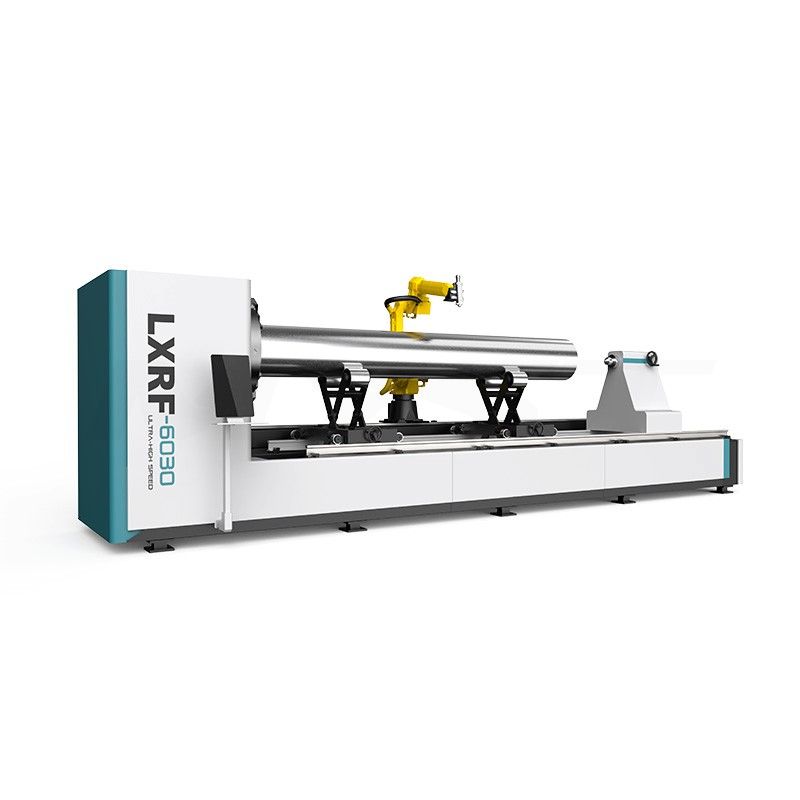

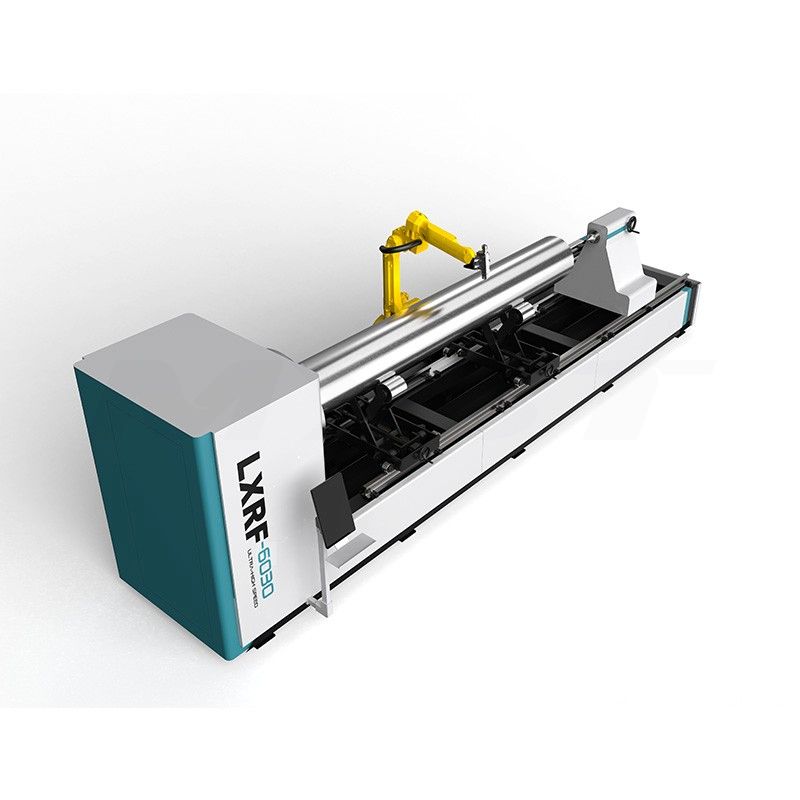

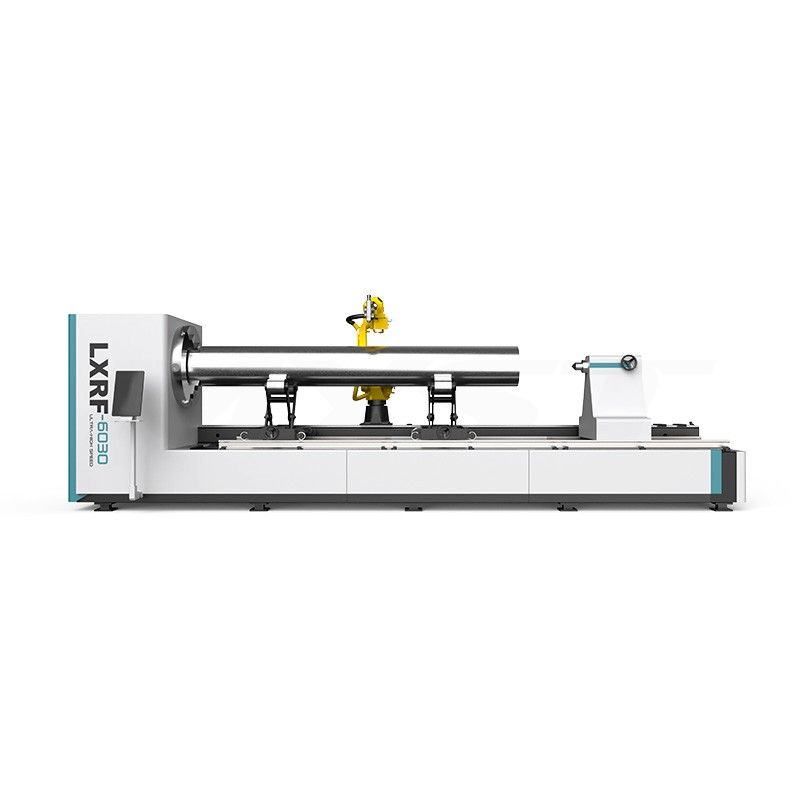

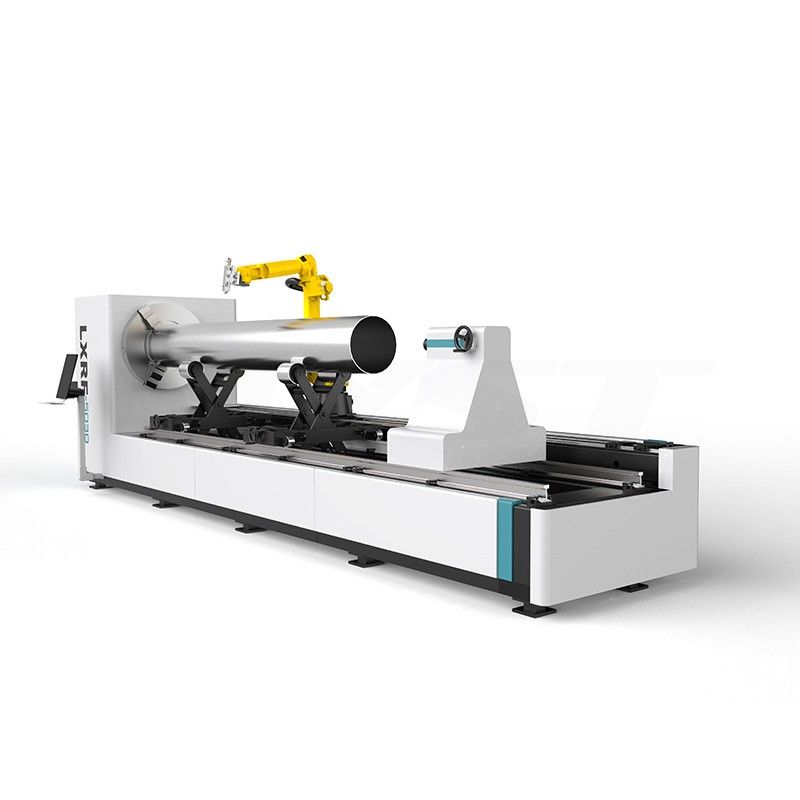

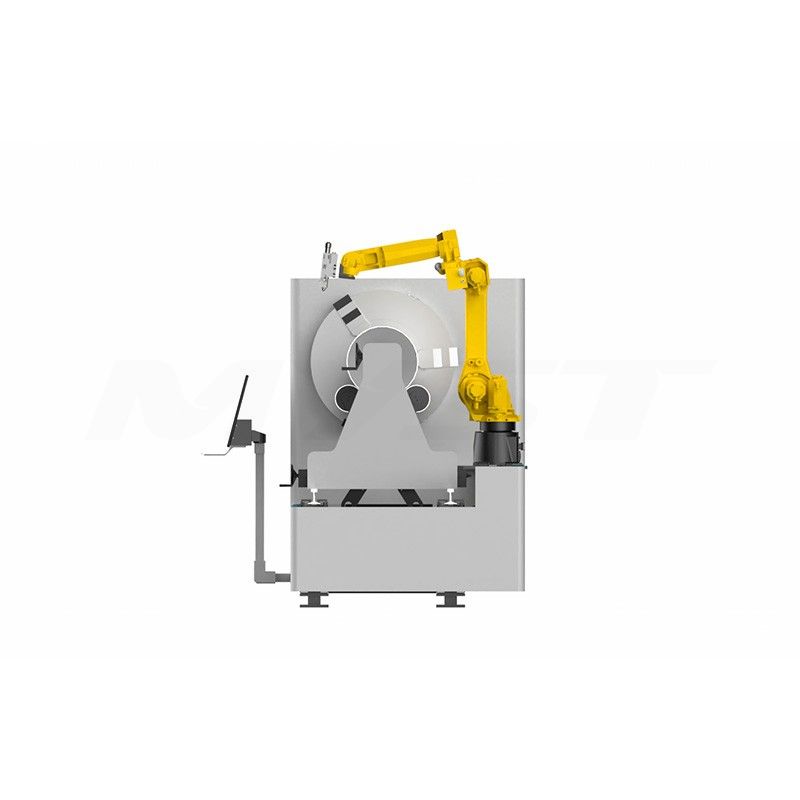

LXRF-6030 Single-Axis Displacement Robot Laser Cladding Machine
Laser cladding: by adding cladding materials on the surface of the substrate and using a high-energy-density laser beam to melt it together with the thin layer on the surface of the substrate, a metallurgically bonded cladding layer is formed on the surface of the base
Double cylinder powder feeder: main parameters:
Powder Feeder Model: EMP-PF-2-1
Powder feeding cylinder: dual-cylinder powder feeding, PLC independent controllable
Control mode: fast switch between debugging and production mode
Dimensions: 600mmX500mmX1450mm (length, width and height)
Voltage: 220VAC, 50HZ;
Power: ≤1kw
Sendable powder particle size: 20-200μm
Powder feeding disc speed: 0-20 rpm stepless speed regulation;
Powder feeding repeat accuracy: <soil 2%;
Required gas source: Nitrogen/Argon
Others: The operation interface can be customized according to requirements
Laser Pyrometer
1. Closed-loop temperature control, such as laser quenching, cladding and surface treatment, can accurately maintain the hardening temperature of edges, protrusions or holes.
2. The test temperature range is from 700'C to 2500'C.
3. Closed-loop control, up to 10kHz.
4. Powerful software packages for process setup, visualization, and data storage.
5. Industrial /0 terminals with 24V digital and analog 0-10V /0 for automation line integration and laser connection.
